Macrolux polycarbonate sheets are supplied in four main categories;
1) multi-wall sheet from 4 MM thick up to 60 MM thick with various walls structures, insulation values and performance characteristics
2) multi-wall panels systems that are interlocking products or panels that are designed for ease of installation
3) corrugated sheets with many different profile structures for roofing applications and 4) solid sheets for clear window glazing applications.
All products can be supplied in various colors, widths and lengths to fit the end use application. All products are offered in a UV resistant grade for external applications.
Hand samples are available from stock and are in 5” x 7” size plaques. Larger samples can be sent if required.
|
|
|
|
|
|

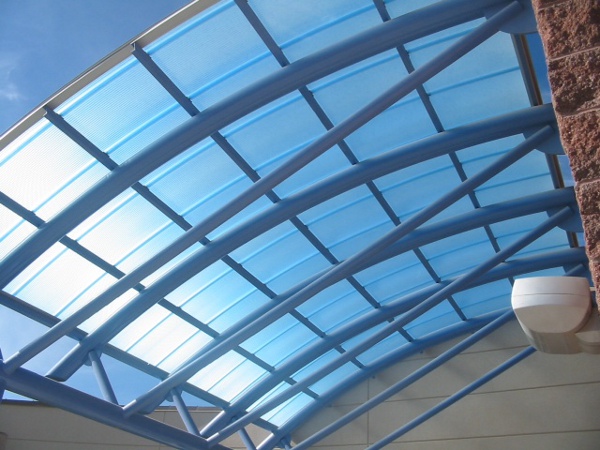

Architectural Panel Systems
|
|
|
|
|
|
|
|
|
|
|
|
CO-EX Corporation offers a number of multi-wall sheet and panel systems specifically designed to meet the structural, technical and aesthetic needs of the building and construction industry. These products are typically used for applications as wide ranging as; skylights, roofing panels, barrel vaults, canopies, walkways, building facades, doors and door panels, windows, pool enclosures and any other building envelope application. Each product is specifically designed to meet rigorous building performance criteria such as; load requirements, impact and breakage, and flammability codes of the industry. These products are developed to be easy to install.
|
|
|
|
|
|
|
|
BDL®
|
BDL (standing seam) is a panel product designed and developed for ease of installation for both sloped and vertical glazing applications. The product features a raised profile that attached to a click which locks to adjoining panels in place for a water tight seam. BDL comes in 16 mm thick and has great thermal insulation values with a U-value of 0.41 and an R-value of 2.44, high light transmission of 63% in clear and of course a 10 year warranty against yellowing. BDL 16 mm, being made from polycarbonate has extreme impact resistance (100 times greater than glass) and it is light weight.
Click Here for Technical Information
|
|
|
|
|
|
|
|
BDL Curved
|
CO-EX Curved Systems combine high thermal performance and strength with the lower cost of a lightweight panel and supporting structure. BDL Polycarbonate panels are able to cold form to a 10' radius and heat form to even tighter radii.
|
|
|
|
|
|
|
|
Modulit 500 LP
|
Modulit 500 LP is a modular panel designed to click in place and create a smooth seam at the intersection of the panels. Modulit 500 LP is 40 mm thick and has high great thermal insulation values with a U-Value of 0.25 and an R- value of 4, high light transmission of 68% in clear and of course a 10 year warranty against yellowing. Modulit 500 LP, being made from polycarbonate has extreme impact resistance (100 times greater than glass) and it is light weight.
Click Here for Technical Information
|
|
|
|
|
|
|
|
Grecatec
|
Grecatec is a multi-wall polycarbonate panel with five walls that provide for great thermal insulation properties. Grecatec, unlike standard multi-wall sheets has a Greca profile which provides high load capabilities and can be easy installed in multi-purpose roofing profiles. This product has excellent light transmission and high impact properties and can be installed on many metal roofs to provide a natural lighting element while having great thermal insulation which will reduce energy costs.
|
|
|
|
|
|
|
|
Ondalite
|
Ondalite is a translucent multi-wall polycarbonate corrugated panel for use in flat and curved coverings in industrial buildings. It is offered in two thicknesses, 3 mm twin wall and 6 mm triple wall. The wave design of the Ondalite matches many of today’s roofing profiles made out of metal and FRP. Ondalite can take high loads, it has good light transmission and good thermal insulation values.
|
|
|
|
|
|
|
|
Vega
Polaris
|
These are two panels systems that offer a high performance solution to glaze any industrial building roof. The products can be summarized as being easy to install, a universal system to be flexible enough to marry to various thicknesses of metal insulation panels, high impact resistance, excellent thermal insulation values and very good fire resistance. Vega 30 mm panels already have a flange that fits many roofing profiles. The Polaris panel comes without the flange to fit to a wider range of roofing options.
|
|
|
|
|
|
|
|
Click 16
|
Click 16 is the perfect product for the do-it-your-selfer. It is ideal for glazing applications for roofing in patios, carports, canopies, sheds or anywhere around the house.
|
|
|
|
|
|
Architectural Sheeting Systems
|
|
|
|
|
|
|
|
|
|
|
Polisnake
|
POLISNAKE is a new and exclusive style of multi-walled sheet from CO-EX Corporation. Utilizing years of expertise in the polycarbonate extrusion industry, POLITEC engineers developed the technique necessary to configure the undulating channels which form the polisnake panel. POLISNAKE sheets feature all the terrific properties you expect from a premier, state-of-the-art provider of polycarbonate panels - high load resistance – minimal weight — excellent light transmission and more. Aesthetically speaking, these panels offer the architect a noteworthy approach to design solutions, with a distinctive wave-look available only with Polisnake.
|
|
|
|
|
|
|
|
|
CO-EX Corporation offers many products for use in architectural sheet applications such as: facades, skylights, canopies, walkways, barrel vaults, roofs and many other applications. All our architectural sheet products have high light transmission, high insulation properties, and good impact properties and are lightweight for ease of installation and framing.
|
|
|
|
|
|
|
|
Macrolux™
|
Macrolux™ Co-extruded Thermoglazing is perfect for applications requiring material which offers high light transmission, thermal insulation, light in weight yet strong, high shock resistance, flame retardance, great economy, vandal resistance and design flexibility. Consider using Macrolux™ Panels in your project.
|
|
|
|
|
|
|
|
M-Wall
|
Macrolux™ Multiwall Polycarbonate in Three-Wall, Five-Wall, 4/M-Wall & 5/M-Wall Shapes Provide a Strong, Flexible &Energy Efficient Glazing for your Projects!
Insulating and Light Diffusing Roofing Macrolux™ "Wall" Series sheets are superior to standard polycarbonate products due to their strong, multilayer con-struction. These layers provide strength with minimal decrease in light transmission. Able to withstand extreme abuse, the impact strength of Macrolux™ is greater than fiberglass, glass & acrylic. Our exclusive Three-Wall, Five-Wall, 4/ M-Wall and 5/M-Wall shapes offer a strength in loading not previously available in other polycarbonate products while maintaining their lightweight characteristics.
|
|
|
|
|
|
|
|
Superlife
|
CO-EX Corporation produces a unique line of high performance sheet materials to support the design and architectural community. Superlife is a two-tone polycarbonate multi-wall sheet that comes in either 16 mm or 25 mm thick (other thicknesses available upon special order request) Many combinations of colors can be produced to provide additional aesthetic to any glazing or skylight application. The most popular combinations are Blue/Opal and Bronze/Opal that are used for awnings, verandas, conservatories and roofing applications. As with all our multi-wall products the Superlife has the additional benefits of having a high thermal insulation value, high light transmission, high load factors and good impact resistance.
|
|
|
|
|
|
|
|
Macrolux™ 10X ES
|
Macrolux™ 10X ES is a 10 wall product with very high insulation values up to a K-Value of 1.1 (U-factor .194, R-value of 5.15). Standard thicknesses of 16mm, 20 mm, 25 mm and 32 mm are offered.
|
|
|
|
|
|
|
|
Rocklite
|
Rocklite is a very high insulation multi-wall sheet material that has 10 walls – which imparts superior insulation properties due to multiple chambers, and comes in a range of thicknesses from 32 mm to 60 mm.
|
|
|
|
|
|
|
|
|
Welcome to our Architectural Gallery. Here you will find a small sampling of polycarbonate sheet application to give you an idea of the widespread use of Co-Ex products.
|
|
|
|
|
|
Solar Control Products
|
|
|
|
|
|
|
|
|
|
|
|
CO-EX Corporation offers a family of Solar Control materials that meets the requirements of many varied applications requiring a transparent or translucent glazing material that can reduce the heat to provide for a comfortable climate wherever our material is used. The technology employs a number of specialty additive(s) applied to either the surface or into the mass of the material which reflects the heat out of the sheet into the atmosphere as shown in the diagram.
The product performance can be adjusted to meet the needs of the application by adding more or less of the heat reflective additive(s). Multiple grades are offered by CO-EX please contact us to request further information on these materials. CO-EX Corporation is the leader in innovation of specialty architectural applications with multi-wall polycarbonate sheet products, let us know of your requirement and we will find a material to fit your needs.
Co-EX Corporation offers four main types of Solar Control multi-wall polycarbonate sheet materials, all of which have a special additive that provides for improved comfort when you are “under the sun”.
|
|
|
|
|
|
|
|
|
Heatshield controls the amount of solar energy transmitted into a structure, that is considered an essential parameter for comfort. Heat Shield products reduce the amount of energy transmitted to the building interior. This is called the “G” value. The G-value is the percentage of solar energy that pass through the sheet (TSET). Shading Coefficient is the amount of solar energy transmitted through the glazing. In Europe G-Values are more commonly used and in the U.S. Shading coefficient is a more recognized measure.
|
|
|
|
|
|
|
|
|
A special reflective finish is co-extruded into the upper surface of our Macrolux Multi-wall sheet, creating our Athermic product. To further reduce internal glare, the underside is given an opal finish which also gives a bright internal appearance. Independent testing confirms that Athermic sheets significantly reduce the total heat/solor energy transmission penetrating through the sheets.
|
|
|
|
|
|
|
|
|
Bi-Color Athermic sheets have all the excellant properties of our standard Athermic sheet, but also includes the enhanced aesthetics that come with it's 2 color design. A special reflective finish is co-extruded into the upper surface of our Macrolux Multi-wall sheet, creating our Athermic product. To further reduce internal glare, the underside is given an opal finish which also gives a bright internal appearance. Independent testing confirms that Athermic sheets significantly reduce the total heat/solor energy transmission penetrating through the sheets.
|
|
|
|
|
|
|
|
Macrolux™ IR
|
By absorbing the infrared rays of the sun, Macrolux IR reduces the heat that builds up in the area enclosed by the sheets. It also protects the enclosure from harmful ultraviolet rays for a more comfortable environment.
|
|
|
|
|
|
Corrugated Products
|
|
|
|
|
|
|
|
|
|
|
|
CO-EX Corporation offers a wide array of corrugated polycarbonate sheet options. All products have high light transmission, very good impact resistance and toughness (against hail damage), high heat resistance and come with our min-dew coating to protect against the formation of water droplets. All Rooflite and Mono-Clear products come with a 10 year warranty against yellowing.
While we stock a number of standard corrugated profiles such as: Greca, Arc wave and Sine wave, we can match most standard metal roof profiles. So if you have a profile you want us to match please provide CO-EX the information and we can provide a quote to you.
|
|
|
|
|
|
|
|
Rooflite HD
|
CO-EX’s Rooflite HD corrugated polycarbonate sheet brings together high light transmission and high diffusion into one product. Manufactured using state-of-the-art UV blocking co-extrusion and pigment technology, Rooflite HD provides many benefits over standard products. The combination of high light transmission and high light diffusion makes this product an excellent choice when used with people, plants or animals.
|
|
|
|
|
|
|
|
Rooflite®
|
Rooflite® corrugated polycarbonate sheet provides design professionals, green-house growers, and do-it-yourselfers with an easily fabricated and installed building product. Unique physical, mechanical, thermal and optical properties combine to make Rooflite® flexible and strong, yet light in weight.
|
|
|
|
|
|
|
|
RoofliteMB®
|
RoofliteMB® corrugated polycarbonate sheet provides design professionals with an easily fabricated and installed building product. Unique physical, mechanical, thermal and optical properties combine to make RoofliteMB® flexible and strong, yet light in weight.
|
|
|
|
|
|
Horticultural Sheet Products
|
|
|
|
|
|
|
|
|
|
|
|
CO-EX Corporation offers a number of multi-wall and corrugated sheet products specifically designed with the Horticultural grower in mind. The products are designed to offer maximum light transmission, while providing thermal insulation and outstanding impact properties. All polycarbonate sheets have over 100 times the impact strength of glass, 30 times the impact strength of acrylic and about 10 times the impact strength of fiberglass.
These products can be offered with a “min-dew” additive which eliminates drops of water forming on the surface of the product.
In the multi-wall family of sheet products we offer standard profiles in twin wall, triple wall and five wall structures.
All standard Macrolux® multi-wall and Rooflite corrugated sheet products come with a 10 year limited warranty against yellowing and damage due to hail.
|
|
|
|
|
|
|
|
|
Welcome to our Horticultural Gallery. Here you will find a small sampling of polycarbonate sheet application to give you an idea of the widespread use of Co-Ex products.
|
|
|
|
|
|
