OVERVIEW

With energy efficiency and green building awareness in the forefront of modern construction practices, Hunter Panels brings cost-effective solutions with its energy smart polyisocyanurate roof insulation. Since its inception in 1998, Hunter Panels has provided environmentally friendly rigid foam panels for the commercial and residential building materials industry. The panels can be used in both flat and steep slope roofing applications, as well as exterior commercial wall applications, both providing energy savings and prompt return on investment for building owners and public buildings.

Hunter Panels is the fastest growing polyiso manufacturer in North America. Polyiso commands an impressive 60% market share in new construction and is incorporated in nearly 50% of retrofit projects as well. Polyiso’s well-known performance characteristics include high thermal resistance values, superior fire and wind ratings, and universal compatibility with all major roofing systems.

In 2011 Hunter Panels launched a new division Hunter Xci, a full line of commercial wall insulation panels. Hunter Xci products are designed for use in commercial wall applications to provide “ci” continuous insulation within the building envelope.

Hunter Xci polyiso products:

  • Have the highest R-Value per inch of any insulation,
  • NFPA 285 TEST – Passed, (see individual submittal docs for assembly lists)
  • Contribute towards LEED certification credits,
  • HCFC, CFC, zero ODP, and negligable GWP


Products
Hunter Panels manufacturers a full line of roofing products including; flat, tapered, nailable, vented, composites and cover boards. Products include H-Shield, H-Shield-WF, H-Shield-NB, H-Shield-F, H-Shield CG, H-Shield HD, H-Shield HD Composite CG, Cool-Vent, Tapered H-Shield, Tapered H-Shield, Hinged Target Sump, and H-Shield Straight and Bevel Cut. Each product is specifically designed to meet the needs of the design community, providing multiple insulation options for a project, regardless of size or scope. Hunter engages in architectural and design partnerships to ensure a successful insulation assembly is specified.

Hunters Xci product line includes Xci CG, Xci Foil, Xci Class A Foil and Xci Ply. These products have been tested and have passed the NFPA 285 assembly test. Go to our website to find our mobile or pc based app which helps you to “Build a Compliant NFPA 285 Wall assembly.” Choose your wall type, Hunter Xci Polyiso product and exterior finish and the app will show you all components in your complaint wall system. Xci 286, for exposed wall or ceiling applications is our latest product launched in the fall of 2013.

Manufacturing Facilities
Headquartered in Portland, Maine, Hunter Panels operates seven production facilities in locations throughout the United States: in NY, IL, FL, TX, UT, PA and WA. With these strategically located and technologically advanced facilities, Hunter Panels has the ability to innovate quickly and provide the market with a broad range of products and services.

DISTRIBUTION

For information, call 888-746-1114

PRODUCTS

X Products below have been hidden based on your last search of 'SEARCH TERMS'.

Click here to SHOW all products
New Products
PRODUCT TRADE NAME DESCRIPTION CONTENT
Rigid Foam Insulation Hunter Xci 286 Rigid Foam Insulation image Xci 286 is an energy-efficient rigid foam insulation composed of a polyisocyanurate foam core manufactured online to glass fiber reinforced foil facers. It can be used in new construction, or used for interior retrofit within existing buildings.

Xci 286 is designed for exposed interior wall or ceiling use in commercial, residential, industrial, agricultural and metal building applications.
BIM
SPECS
CATALOGS
VIDEOS
High-Density Coverboard H-Shield HD High-Density Coverboard image H-Shield HD is a 1/2" thick high density polyiso insulation panel specifically designed for use as a cover board. It is manufactured on line using premium performance coated glass facers. BIM
SPECS
SPECWIZARD
CATALOGS
Composite Insulation CG Panels H-Shield HD Composite CG Composite Insulation CG Panels image H-Shield HD Composite CG is a unique composite insulation panel comprised of 1⁄2” high density polyiso cover board laminated during the manufacturing process to H-Shield CG rigid polyiso roof insulation. This product is ideal for commercial roofing projects that require high thermal efficiency combined with maximum durability in both new construction and retrofit applications. R-value is optimized with a thinner profile than any other insulation available on the market. BIM
SPECS
SPECWIZARD
CATALOGS
Exterior Wall Insulation Panel Xci Class A Exterior Wall Insulation Panel image Xci Class A is an exterior wall insulation panel composed of a Class A rigid polyisocyanurate foam core laminated during the manufacturing process to reinforced foil facers. BIM
SPECS
SPECWIZARD
CATALOGS
Exterior Wall Insulation Panels Hunter Xci CG Exterior Wall Insulation Panels image Xci CG is a high thermal resistive rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded on-line during the manufacturing process to a premium performance coated glass facer. It is designed for use in commercial wall applications to provide continuous insulation within the building envelope. BIM
SPECS
SPECWIZARD
CATALOGS
Exterior Wall Insulation Panels Hunter Xci Foil Exterior Wall Insulation Panels image Xci Foil is a high thermal resistive rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded on-line during the manufacturing process to an impermeable foil facing material. It is designed for use in commercial cavity wall applications to provide continuous insulation within the building envelope. BIM
SPECS
SPECWIZARD
CATALOGS
Exterior Wall Insulation Panels Hunter Xci Ply Exterior Wall Insulation Panels image Xci Ply is a high thermal resistive rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a fiber reinforced facer on one side and 5 /8" or 3⁄4" Fire treated plywood on the other. It is designed for use as exterior continuous insulation in a wall assembly. BIM
SPECS
SPECWIZARD
CATALOGS
Roof Insulation
PRODUCT TRADE NAME DESCRIPTION CONTENT

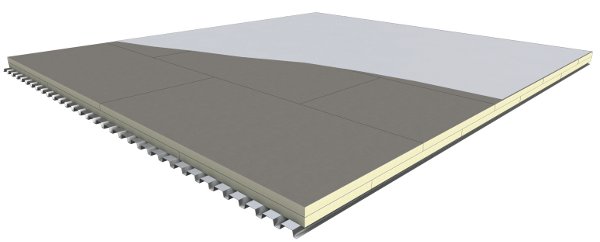

Flat Polyiso Insulation H-Shield Flat Polyiso Insulation image H-Shield flat polyiso is the core of the Hunter product line. For the roof system designer who demands that function come first, H-Shield is the definitive answer. A closed cell polyisocyanurate foam core is bonded during a continuous process to fiber reinforced or fiberglass facers to produce a rigid 4’x8’ or 4’x4’ panel. BIM
SPECS
SPECWIZARD
CATALOGS
LEED

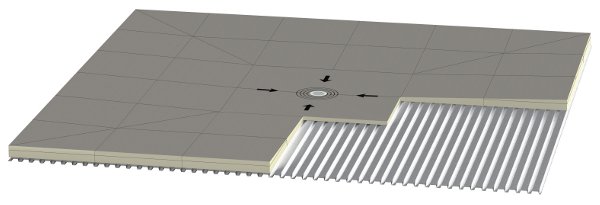

Tapered Polyiso Insulation Tapered H-Shield Tapered Polyiso Insulation image The elimination of ponding water on a roof surface extends the life of the roofing membrane, reduces structural burden and discourages mold and algae. This sloped rigid roof insulation is produced on-line in 1/8", Ό”, 3/16" or ½" per foot. 4’x4’ panels to promote positive drainage. Hunter Panels team will work with you from start to finish to engineer the appropriate tapered design for your roof configuration and drainage requirements. BIM
SPECS
SPECWIZARD
CATALOGS
LEED
Flat polyiso bonded to Premium Performance Coated Glass Facer H-Shield CG Flat polyiso bonded to Premium Performance Coated Glass Facer image H-Shield CG is a rigid roof insulation panel composed of a closed cell polyiso foam core laminated on-line to a premium performance coated glass facer. This product is approved for Class A rating without a fire rated slip sheet, or the presence of a gypsum cover board when applied at a thickness of 3" or greater in a single layer or in combination of multiple layers. Compatible with all Single Ply membranes. BIM
SPECS
SPECWIZARD
CATALOGS
Sloped polyiso bonded to Premium Performance Coated Glass Facer Tapered H-Shield CG Sloped polyiso bonded to Premium Performance Coated Glass Facer image Tapered H-Shield-CG is a sloped rigid roof insulation panel composed of a closed cell polyisocyanurate foam core bonded on-line to coated glass fiber matt facers (gray). Tapered H-Shield-CG is designed to promote positive drainage and prevent ponding water. For best results, use Hunter Panels Tapered Shop Drawings. BIM
SPECS
SPECWIZARD
CATALOGS
Flat Polyiso Bonded to OSB H-Shield NB Flat Polyiso Bonded to OSB image Polyiso bonded in the manufacturing process to OSB combines the insulating properties of polyiso with a nailable base in a single layer application. H-Shield NB has superior pullout values for use in standing metal roof systems and incorporates APA rated Exposure 12 Oriented Strand Board. The OSB is routed on line to allow for expansion and contraction of the joints. H-Shield NB is available in 47 ½ x 95 ½” panels in thicknesses of 1.5” to 4” with either 7/16” or 5/8” OSB. BIM
SPECS
SPECWIZARD
CATALOGS
LEED
Ventilated Nailbase Insulation Panel Cool-Vent™ Ventilated Nailbase Insulation Panel image The hottest product in the Hunter line-up, we think of Cool-Vent as the Mercedes Benz of Vented Nailboards. Built for rigidity and ease of handling, Cool-Vent consists of a 4’x8’ panel of polyiso, wood spacers and a top layer of OSB or plywood. CoolVent is made specifically for Cathedral Ceilings, Log, Post and Beam and Timber Frame applications. Cool-Vent meets shingle manufacturers warranty requirements for ventilated systems and is ideal for under shake, tile or metal panel applications. CAD
BIM
SPECS
SPECWIZARD
CATALOGS
LEED
Flat Polyiso Insulation Bonded to Wood Fiberboard H-Shield WF Flat Polyiso Insulation Bonded to Wood Fiberboard image Polyiso bonded in the manufacturing process to ½” high-density wood fiberboard. H-Shield WF is ideal for high traffic areas and fully adhered single-ply applications. H-Shield WF is available in thicknesses of 1.5” to 4”. BIM
SPECS
SPECWIZARD
CATALOGS
LEED
Tapered Polyiso Insulation Bonded to Wood Fiberboard Tapered H-Shield WF Tapered Polyiso Insulation Bonded to Wood Fiberboard image Tapered Polyiso bonded in the manufacturing process to ½” high-density wood fiberboard. Tapered H-Shield WF is ideal for high traffic areas and fully adhered single-ply applications. Tapered H-Shield WF is available in thicknesses of 1.5” to 4”. BIM
SPECS
SPECWIZARD
CATALOGS
LEED
Rigid Polyiso Insulation Bonded to Foil H-Shield F Rigid Polyiso Insulation Bonded to Foil image H-Shield Foil is a rigid roof insulation panel composed of a closed cell polyiso foam core bonded on line during the manufacturing process to an impermeable foil facing material. It is used in constructions requiring FM Class 1 and UL Class A ratings and is compatible with Single-Ply Roof Systems. BIM
SPECS
SPECWIZARD
CATALOGS
