Overview: Tymetal Corp., a Fort Miller Group Company, designs and manufactures the most extensive line of perimeter security automatic gates and accessories for the Commercial/Industrial and the Correctional markets. Security gates and electric gate operators manufactured by the Tymetal Corp. include aluminum gates, cantilever gates, slide gates, crash gates, barrier gates, steel gates, ornamental gates, high speed gate operators, detention equipment, electric gate operators, sliding gate operators, chain link gates, and vertical lift gates.
Applications include access control, industrial/commercial perimeter security, correctional facilities, port authority, prison security, military base and airport security. Since 1985, Tymetal automatic gate systems are known for being the highest quality electric gate system available featuring high strength interlocking aluminum extrusions and truck assemblies with stainless steel bearings to ensure longevity. Factory quality control with certified welders and process results in a gate that will glide effortlessly and stand up to inclement weather conditions better than any other automatic gate system alternative.

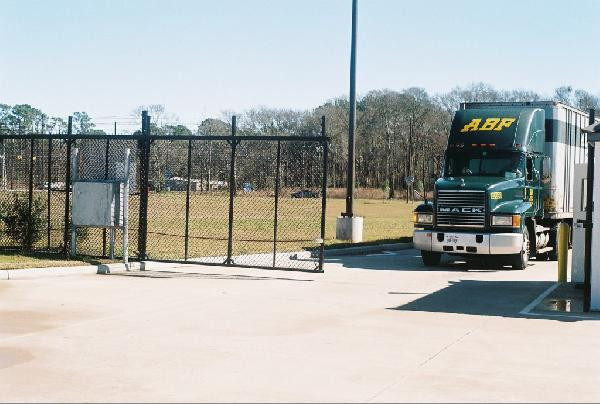

Openings to 30', the Fortress Heavy Duty Slide Gate, manufactured by Tymetal Corp., is the highest quality cantilever gate system available. This slide gate is suitable for manual or automatic gate operation and has been installed at thousands of perimeter security projects across the USA. These gates comply with the latest industry safety standards for automatic gates (UL 325 and ASTM F2200) and are appropriate for single gate openings up to 30 feet (up to 60 feet for double gates). Tymetal cantilever gates can be operated by a variety of electric gate operators (chain or hydraulic drive).
Openings to 40, the Fortress Structural Slide Gate, manufactured by Tymetal Corp., is a cantilever system of unique double track design appropriate for openings up to 40 feet for singles and up to 80 feet for doubles.
Openings to 60, the Fortress Box Frame Slide Gate, manufactured by Tymetal Corp., is a cantilever system designed to handle the forces of gravity and wind, using box frame construction and stainless steel cable. Diagonal cross members eliminate lateral sway while numerous design features necessary for single gates with widths up to 60 feet, 120 feet for doubles, address potential stresses on the gate.
Fortress Ornamental Gates are adaptable to nearly any type of Tymetal gate configuration and are the perfect choice for closures that need security with an attractive design and finish. Some options of gate choices available include: heavy duty, structural and box frame cantilever slide gate, swing gates and vertical lift gates, just to name a few.
Openings to 40, the entire gate package is comprised of standard components. These components are pre-tested as a system to assure compatibility and to expedite design and delivery while also reducing installation errors and facility maintenance requirements.
Openings to 40, the Fortress Heavy Duty Overhead Slide Gate, manufactured by Tymetal Corp., solves closure requirements that are particularly rigorous. Truly a specialty gate, the Heavy Duty Overhead Slide Gate is made to withstand greater than normal stresses in very large openings. The installation method is versatile, as the gate may remain freestanding or may be hung between three pairs of 4" OD posts with a structural steel support beam or wall mounted with the appropriate support system.
Openings to 250, the Fortress Box Frame Roller Gate, manufactured by Tymetal Corp., represents a dramatic break-through in the design, construction and performance of large roller gates by using a specially designed wheel system. Openings up to 400 feet have been protected using this design. When the gate is operating under normal load, the wheels run on the flat surfaces of the top and side of a W4 x 13 steel beam. As wind begins to put lateral pressure on the gate, the width of the wheel system and its low center of gravity tends to keep the gate in place. However, when the wind load is strong enough to cause the wheels to lift from the beam, the safety clips come in contact with the underside of the top flange of the track and the gate remains safely anchored to the ground.
Openings to 83, the Tymetal Telescoping Box Frame Roller Gate (patent pending) is a ground track roller gate that includes an internal extension gate frame which allows smaller gates to close bigger openings. For example an 60' opening could be closed with a gate that has an overall length of less than 37' (prior cantilever designs would have required 90')!
Openings to 60, Tymetal's Fortress Vertical Lift Gate is specified in cases of high usage, especially when there is insufficient space outside of the gate opening for an overhead or cantilever gate to retract before hitting an obstacle. The heavy construction of the superstructure, combined with a drive chain mechanism, lifts the gate open and pulls the gate closed.
Openings to 24 (Doubles to 48). the Fortress Swing Gate is specified when the site configuration does not allow for full movement of a slide gate and its counterbalance. Swing gates are typically used between two buildings or where the ground rises or falls sharply away from the outer side of the gate post.
The Tymetal 2150 Pedestrian Swing Gate is a secure, fully assembled pre-hung system that is easy to install. It is available with a variety of in-fill and locking options.
The FIGS is a slide gate that has been crash tested for openings up to 24 based on U.S. Department of State (DOS) vehicle crash performance guidelines and has a K-4 rating.
The vertical Pivot Arm is certified by the United States Department of State (DOS) as an Active Drop Arm / Bar Vehicle Barrier. The Vertical Pivot Arm received a DOS rating of K-12. Clear openings up to 17 feet (Arm) and 15 feet (Gate)
The vertical Pivot Arm is certified by the United States Department of State (DOS) as an Active Drop Arm / Bar Vehicle Barrier. The Vertical Pivot Arm received a DOS rating of K-12. Clear openings up to 17 feet (Arm) and 15 feet (Gate)
PLUSS vehicle sallyport locking systems are the workhorse of the correctional market. These innovative locking devices have earned the reputation of being the most cost advantageous systems in today's correctional market. Our products perform! Tymetal has a reference list (available upon request) that will illustrate our commitment to service, timely delivery, low maintenance requirements and the outstanding training/technical support services we provide.
Virtually maintenance free! Tymetal's 2150 Swing Gate System is manufactured to meet demanding requirement of correctional facilities and allow gatekeepers the safe, secure movement of inmates.
Virtually maintenance free. Tymetal's 2200-A Swing Gate System is manufactured to meet demanding requirements of maximum security and to provide for the safe, secure movement of inmates.
When you need safe, secure movement of inmates, specify Tymetals 3100 Sliding Gate System. Discerning correctional officers and facility maintenance staff will attest that the 3100 Sliding Gate System operates in a smooth, consistent manner with two point positive locking. Virtually maintenance-free, the 3100 Sliding Gate System is your choice for safeguarding your operational costs and personnel management.
Openings to 30, TYM 1000-H is a complete gate system compliant with UL 325 and ASTM F2200, designed and engineered as a whole, providing for trouble free installation, low maintenance, long service life, with a 1/2 hp continuous duty PSC motor and 115 VAC single phase power.
Openings to 40, the TYM-2000 Operator - designed as part of a complete gate system, compliant with UL 325 and ASTM F2200, designed and engineered as a whole, providing for trouble free installation, low maintenance, long service life, with a 1 hp continuous duty PSC motor and 208 or 230 VAC single phase power.
Openings to 40.
A complete system designed and engineered as a whole, providing low preventative maintenance requirements, long service life, and factory certified 200,000 cycle tested gate and gate operator. Soft start and stop with adjustable speeds from 1.2 to 2.2 ft / second. UL Class III and IV only.
Openings to 60.
Box Frame Cantilever Slide Gate and Operator system engineered to span large openings. Soft start and stop with adjustable speeds from 1.2 to 2.2 ft / second. UL Class III and IV only.
Openings to 60.
Box Frame Cantilever Slide Gate and Operator system engineered to span large openings. Hydraulic rail drive system with speed of 26 / second. UL Class III and IV only.
Openings to 83.
Suitable for large openings with limited space to each side. Variable speed operator with soft start and stop feature having adjustable speeds from 1.2 to 2.2 ft / second. UL Class III and IV only.
Openings to 60.
The Vertical Lift Gate is specified in cases of high usage, especially when there is insufficient space outside of the gate opening for an overhead or cantilever gate to retract before hitting an obstacle. The heavy construction of the superstructure, combined with a drive chain mechanism, lifts the gate open and pulls the gate closed.
Openings up to 48 (bi-parting).
Commercial swing gate and operator system suitable for single clear openings up to 24 and double / bi-parting openings up to 48. UL Class I, II, III and IV.
