Overview:
AcoustiCorkPRODUCTS™ are recognized in the building industry as some of the most effective sound control and crack suppression underlayments used under hard surface floors. Residential and commercial high-rise complexes such as condominiums, hotels and motels throughout the United States, Canada and Europe have used AcousticorkPRODUCTS™ to reduce unwanted noise.

AcoustiCorkPRODUCTS™ are designed to meet building codes and condominium association requirements for floor/ceiling assemblies using ceramic tile,marble, stone or hardwood floors.

AcoustiCorkPRODUCTS™ have been tested in accordance to ASTM standards for acoustical values at Riverbank Acoustical Laboratories,an independent laboratory accredited by the National Bureau of Standards of the U.S. Dept. of Commerce and NVLAP.

Products Trade Name Description Content

NEW
High Performance Composite Sheet Control Underlayment

CRC950
AcoustiCORK / Amorim Cork Composites <B>NEW</B><BR>High Performance Composite Sheet Control Underlayment<BR><BR>
click to enlarge
Ideal for ceramic tile, hardwood and other hard surface flooring applications, AcoustiCORK™ CRC950 utilizes Multi-Material composite technology to create a product with several resonance frequencies. Only 9.5mm thick, it provides the performance required to meet or exceed most building code, developer or condominium associations requirements, even when there is no sound rated ceiling assembly present, without creating excessive thickness and/or transition issues.

SpecWizard Specs Green Product Data

NEW
High Performance Profile Wave Technology Sound Control Underlayment

PR60
AcoustiCORK / Amorim Cork Composites <B>NEW</B><BR>High Performance Profile Wave Technology Sound Control Underlayment<BR><BR>
click to enlarge

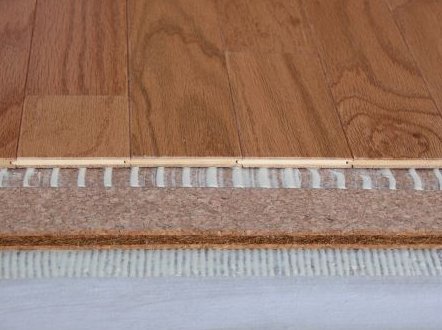

AcoustiCORK™ PR60 uses proprietary profile wave technology to minimize direct contact with the subfloor to maximize the IIC (Impact Isolation Class) performance of glued or floating wood or laminate floor systems, while still maintaining the structural support needed for a secure installation. Only 6mm thick, it provides the performance required to meet or exceed building code, developer or condominium associations requirements, in nearly all applications, even when there is no sound rated ceiling assembly present, without adding excessive thickness or cost to the floor system.

SpecWizard Specs Green Product Data

Sound Control Underlayments

R60 6mm
AcoustiCORK / Amorim Cork Composites Sound Control Underlayments<BR><BR>
click to enlarge
R60 is a 6mm thick underlayment product available in rolls or sheets, designed to meet building code and condominium association requirements when the floor/ceiling assembly is ceramic, natural stone or wood, generally with a sound rated ceiling assembly as part of the structure.

SpecWizard Specs Green Product Data

Sound Control Underlayments

S130 13mm
AcoustiCORK / Amorim Cork Composites Sound Control Underlayments<BR><BR>
click to enlarge
S130 is a ½" (13mm) thick sheet underlayment product designed to meet building code and condominium association requirements when the floor/ceiling assembly is ceramic, natural stone or wood, when there is no sound rated ceiling assembly present.

SpecWizard Specs Green Product Data

Sound Control Underlayments

R25 2.5mm
AcoustiCORK / Amorim Cork Composites Sound Control Underlayments<BR><BR>
click to enlarge
R25 is a 2.5mm thick underlayment product designed to meet building code and condominium association requirements when the floor/ceiling assembly is a floating laminate or wood floor with a sound rated ceiling assembly present. Also an excellent all-natural upgrade to the foam based underlayments commonly used in conjunction with floating wood and laminate floors.

SpecWizard Specs Green Product Data

Floating Floor Underlayment

Quiet Comfort
AcoustiCORK / Amorim Cork Composites Floating Floor Underlayment<BR><BR>
click to enlarge
AcoustiCORK™ Quiet Comfort offers the latest in floating floor underlayment technology. Its unique wave texture allows the subfloor to “breathe”; greatly reducing the possibility of mold or mildew occurring between the underlayment and the subfloor. The unique wave texture also provides improved step noise reduction and increased walking comfort. Unlike many synthetic materials it has no residual odor and it is guaranteed to retain its original thickness, even after years of heavy use.

SpecWizard Specs Green Product Data

Crack Suppression Membrane

StressCORK™ R12
AcoustiCORK / Amorim Cork Composites Crack Suppression Membrane <BR><BR>
click to enlarge
R12 is a 1.2mm cork/rubber composite membrane designed to prevent unsightly stress cracks due to structural or thermal movement from reflecting through to a ceramic or natural stone floor.

SpecWizard Specs Green Product Data

Green Building Initiatives

AcoustiCORK / Amorim Cork Composites Green Building Initiatives<BR><BR>
click to enlarge
Maximum LEED™ Potential---Rapidly renewing bark of cork oak trees, no trees are cut down! Post industrial product of wine corks, produces a zero waste stream and results in no toxic emissions.

Green Product Data

Installation Details

AcoustiCORK / Amorim Cork Composites Installation Details<BR><BR>
click to enlarge
Part of the natural attraction of AcousticorkPRODUCTS™ is the working ability to install the product and immediately move on to the next installation step with no waiting time.

With AcousticorkPRODUCTS™ you are guaranteed a consistent thickness of the sound control underlayment without trowel leveling of products that are mixed on site. The consistent thickness ensures a quality sound rated floor system.

Field Acoustical Testing

AcoustiCORK / Amorim Cork Composites Field Acoustical Testing <BR><BR>
click to enlarge
Test results in field conditions in accordance with the ASTM test methods.
