Cable Tray
|
|
|
|
|
|
|
|
|
|
|

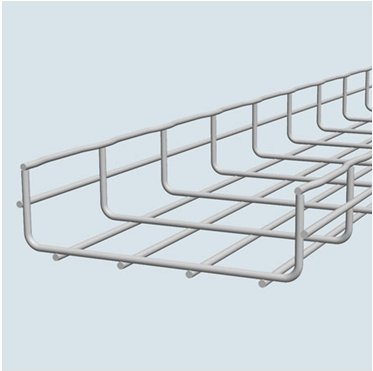

CF 54
|
The special Safe-T-Edge protects installers from sharp ends while it prevents cables from fraying. The wire mesh is smooth and round to resist dirt and dust build-up. Cable tray straight sections come in easy to handle standard 10' lengths. The large mesh size (2" wide by 4" long ) offers numerous benefits! The size of the mesh allows cable installers to route cables in and out at any point without cutting the tray. The 1" to 6" high flange side of the tray prevents cables from falling off. Dimensions are nominal; other sizes available on request. Available in the following finishes: Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted.
|
|
|
|
|
|
|
|

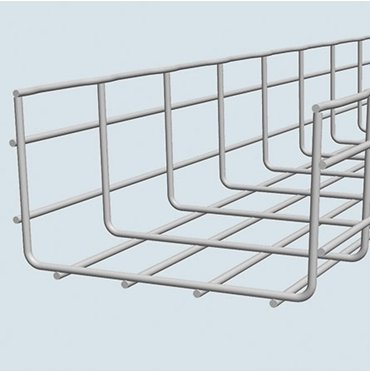

CF 150
|
Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight.
|
|
|
|
|
|
|
|

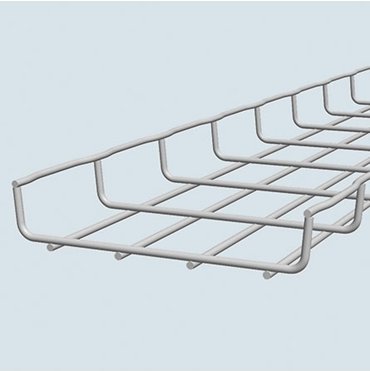

CF 30
|
Available in the following finishes: Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted.
|
|
|
|
|
|
|
|
CF 105
|
Available in the following finishes: Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted.
|
|
|
|
|
|
|
|
EDRN - Fast Splice
|
- Fastest splice available from Cablofil, saves up to 1/2 the install time compared to using bolted connections.
- Special assembly tool (EDRNTOOL) is included in every bag of splices.
- UL Classified Splice.
|
|
|
|
|
|
|
|
|
FAS P - FAS Profile
|
- Pre-drilled mounting holes make installations easy.
- Patented FAS style attachment secures tray without nuts and bolts.
- Will hold tray away from wall .66"
|
|
|
|
|
|
|
|
|

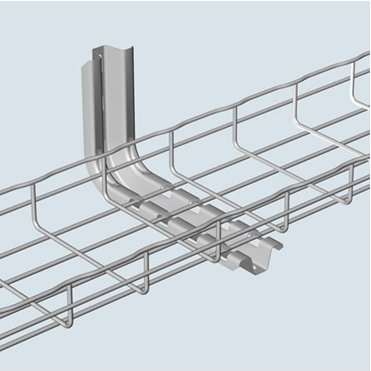

FAS L - Bracket
|
- For installation of Cablofil tray onto walls.
- Reduce installation time - patented FAS style attachment holds cable tray secure without nuts and bolts.
- Order "width" to match tray.
|
|
|
|
|
|
|
|
|
FAS U
|
- For cable tray installation onto walls or channel framing.
- Patented FAS style attachment holds cable tray secure without nuts and bolts.
|
FAS U 400, FAS U 500, FAS U 600
- For wider tray and heavier loads.
- Snaps directly into EDF rail.
|
|
|
|
|
|
|
|
|
|
Legrand®/Cablofil is the world's most specified cable tray with decades of experience in the industry. Each of our cable tray lines is designed for maximum flexibility and expandability that help installers finish projects faster and reducing costs, while supporting cables better. And with multiple North American manufacturing facilities, we are perfectly positioned to supply any size project.
|
|
|
|
|
|
|
|
Cablofil Ladder Tray
|
Legrand®/Cablofil has a wide variety of two rail cable management products to provide our customers with specific products they need - from standard products lines to custom-built designs in finishes to meet the demands of any application. Our exclusive long span/heavy duty ladder tray is designed with I-beam side rails that can span up to 40' and meet exacting industry and load standards.
|
|
|
|
|
|
|
|
|
Choose from our extensive selection of rail, rung and bottom styles with finishes that include aluminum, steel, 304L and 316L stainless steel finishes to meet the needs of any application. Rail heights range from 4" to 10" and width sizes are available up to 36".
|
|
|
|
|
|
|
|
|
For extremely corrosive applications we offer a full line of straight sections, fittings, covers and mounting accessories in polyester and vinylester fiberglass. Rail heights are available in 4" and 6" and widths are available up to 36".
|
|
|
|
|
|
|
|
|
Center Spine Cable Tray is easily installed and designed with many unique features to provide safety, reliability and flexibility for future expansion. All fittings are field modifiable and each straight section comes with preassembled couplings to reduce installation time. And Center Spine can be used to construct a complete FiberReady® cable pathway that meets the specifications for fiber optic and UTP/STP cabling
.
|
|
|
|
|
|
|
|
|
Our channel tray is constructed with a one-piece solid or ventilated bottom up to 6" in width. Available finishes include aluminum, mill and hot-dipped galvanized steel, with additional finishes for corrosive environments. These include 304L and 316L stainless steel and polyester and vinylester fiberglass.
|
|
|
|
|
|
|
|
|
Legrand®/Cablofil cable runway is available in tubular side rails that are lightweight yet strong and solid-bar side rails for maximum strength. Both style utilize rungs made of tubular steel. Finishes include powder coating in a range of standard colors and hot-dipped galvanized steel.
|
|
|
|
|
|
|
|
|
Legrand®/Cablofil has joined with Loos and Company, the industry's top manufacturer of Seismic Wire Rope/CableTM Bracing, to provide a comprehensive and unique line of seismic protection products specifically designed for electrical cable tray applications.
|
|
|
|
|
|
PreFab Wiring Assemblies
|
|
|
|
|
|
|
|
|
|
|
FAS Power™
|
With FAS Power, much of the electrical assembly is completed in advance, dramatically cutting project completion times and saving a minimum of 50% in labor costs. Consider FAS Power for substantial or repetitive wiring projects in hospitals, condominium complexes, office buildings or hotels.
All FAS Power products on our web site and
in our catalog are either UL or ETL listed.
|
|
|
|
|
|
|
|
|
The FAS Power Floor Bracket Wired Assembly consists of a floor bracket, 4" rings, back side support arm, 4 11/16" x 2 1/8" boxes and devices that are pre-wired to precut MC cable. All pre-installed outlets and PlugTail devices are shielded in plastic to keep them finish ready during the taping and painting process. The boxes are mounted independent of the rings to allow the devices to be used for in-line or multi-wire branch circuits. Legrand®/Cablofil uses quality components in every FAS Power product, including P&S Plug Tail wiring devices and Southwire MCAPTM metallic clad cabling.
|
|
|
|
|
|
|
|
|
The FAS Power Wall Bracket Wired Assembly consists of a wall bracket, 4" rings, back side support arm, 4 11/16" x 2 1/8" boxes and devices that are pre-wired to precut MC cable. All pre-installed outlets, switches and PlugTail devices are shielded in plastic to keep them finish ready during the taping and painting process. The boxes are mounted independent of the rings to allow the devices to be used for in-line or multi-wire branch circuits. Legrand®/Cablofil uses quality components in every FAS Power product, including P&S PlugTail wiring devices and Southwire MCAPTM metallic clad cabling.
|
|
|
|
|
|
|
|
|
The Floor Bracket is the centerpiece of our product line and represents the latest innovation by our Wiring Systems. The patented design permits fast installation anywhere between studs and ensures correct device mounting height with no measuring required.
|
|
|
|
|
|
|
|
|
The Wall Bracket offers unsurpassed versatility for the installation of electrical boxes anywhere between studs at any height.
|
|
|
|
|
|
|
|
PlugTail™
|
FAS Power products feature Pass & Seymour/Legrand® receptacles and switches to meet the demands of any commercial project.
|
|
|
|
|
|
|
|
|
Using MC cable with FAS Power helps you gain a competitive advantage on every job.
|
|
|
|
|
|
