Photographs of cable railing projects using Johnson Architectural Hardware.
|
|
|
|
|
|
|
|
|
So simple but so effective, the Terminator Turnbuckle is an easy choice for railings or glass shelves. 3/16" Terminators work great for railings. 1/8" Terminators work great with Johnson's Glass Shelf fittings.
|
|
|
|
|
|
|
|
|
The Classic Jaw and Swage Turnbuckle is an excellent choice for a wide variety of applications. A clevis pin in the jaw attaches to eyes, tabs, or in a channel. Can be used in straight run or at an angle. Larger sizes available.
|
|
|
|
|
|
|
|
|
Our Classic Deck Toggle and Swage Turnbuckle can be mounted to any flat surface and is held in place with two tabs suitable for through bolting. The best feature of the deck toggle is that it can articulate 140 degrees.
|
|
|
|
|
|
|
|
|
The Classic Ball End and Swage Turnbuckle is made to accept the angles of stairways. The Ball End allows the turnbuckle to integrate itself to your desired angle. The ball allows this turnbuckle to gimbal in its mount.
|
|
|
|
|
|
|
|
|
Appearing in the middle of the cable, the Classic Swage to Swage Turnbuckle needs a fitting at each end to make a complete assembly. You need to use three fittings per cable run, but it makes for a distinctive look.
|
|
|
|
|
|
|
|
|

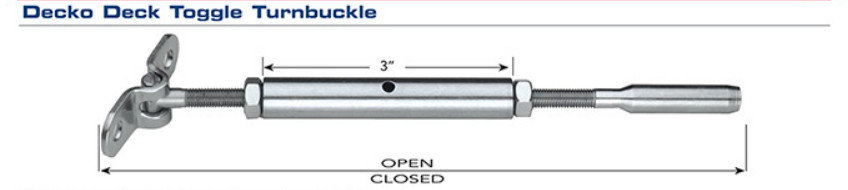

Our Decko Deck Toggle and Swage Turnbuckle can be mounted to any flat surface and is held in place by two tabs suitable for through bolting. The best feature of the deck toggle is that it can articulate 140 degrees.
|
|
|
|
|
|
|
|
|
The Decko Button and Swage Turnbuckle has a clean simple look with no jaw. It must be used on a straight run and attached in a through hole with the button on the back side of the baluster.
|
|
|
|
|
|
|
|
|

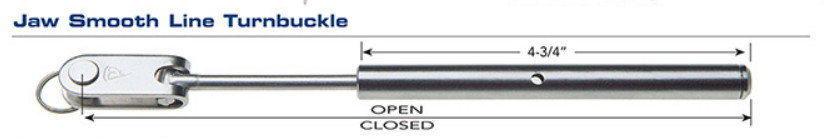

The Smooth Line Turnbuckles are state-of-the-art fittings. The cable is terminated internally. One does not see a swage terminal (or threads) as on a conventional turnbuckle. The Jaw Smooth Line Turnbuckle adapts itself to a wide variety of projects. The jaw will easily attach to eyes, tabs, or in a channel.
|
|
|
|
|
|
|
|
|
The Button Smooth Line Turnbuckle has the cleanest, simplest look of all the Smooth Lines. The button retains the fitting in a through hole in the baluster. The fitting is used in straight line runs.
|
|
|
|
|
|
|
|
|
Toggle Jaw
Deck Terminal
Button Terminal
Ball Terminal
Threaded Terminal |
|
|
|
|
|
|
|
|
|
Turnbuckle Bodies
Turnbuckle Jaws
End Caps
|
|
|
|
|
|
|
|
|
STA-LOCK® mechanical fittings offer a simple and effective way to make cable assemblies with simple hand tools. These fittings work under constant loads and variable shock loading and develop full wire strength. STA-LOCK® fittings are compatible with Johnson fittings.
|
|
|
|
|
|
|
|
|
The Glass Shelf Fitting works on 1/8" wire and 3/8" thick glass. The Glass Shelf Fittings make it easy to make glass shelves with cable and glass for a unique look. Johnson does not sell glass.
|
|
|
|
|
|
|
|
|
Johnson's 1/4" stainless steel vertical rods are an excellent choice for vertical railings. The 1/4" rods need to be placed every three inches to satisfy code requirements. Held in place at the top with Johnson's Button End Cap, the rod is tensioned at the bottom with 1/4" x 28 thread. A wrench flat is provided at the bottom to rotate the rod tight. The rods can be threaded directly into the railing or held with a conventional nut and washer. A steel fabricator must provide a framework and cap rail for the rods. Additional sizes available; please call for more information.
|
|
|
|
|
|
