OVERVIEW

Aluflam found a solution to what was long considered an impossible dream - the use of aluminum frames for fire-rated glazing applications. Traditional aluminum is not known to be a very fire-resistant material, but with Aluflam’s patented technology, a proven combination of insulated aluminum framing and clear, laminated glass was established. The Aluflam system has been tested and approved and is available to the architectural and construction communities worldwide.

Our wall, door, and window systems offer the ultimate in safety characteristics, aesthetics, and design flexibility. Used in both building and marine environments, our products provide many benefits.

  • The clean, sharp lines of extruded aluminum framing.
  • Clear, laminated glazing.
  • Reduced radiant heat through insulated frame and glazing.
  • Increased design freedom
  • Tested and approved to national and international fire codes.
  • Multitude of finishing options.
  • Top of the line hardware options – conforming with North American standards.
  • Simple to install.
  • High impact resistance.
  • No corrosion.
  • Energy efficient.
  • Reduced noise transmission.


We are committed to be the supplier of choice for fire-rated aluminum glazing systems.

PRODUCTS
X Products below have been hidden based on your last search of 'SEARCH TERMS'.

Click here to SHOW products

  • Wall Systems
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT
    Curtain Wall System image Constructed from narrow aluminum extrusions filled with a proprietary fire blocking internal member, Aluflam's curtain wall frames have up to 120 minute rating for interior and exterior installations. Aluflam curtain wall products are fully tested and listed by Underwriters Laboratories to UL 263 and UBC 7-4 (1997) standards. All Aluflam fire-rated products are MEA approved for use in the City of New York.
    PDF Curtain Wall System e-Catalog Videos for Curtain Wall System
  • Door Systems
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT

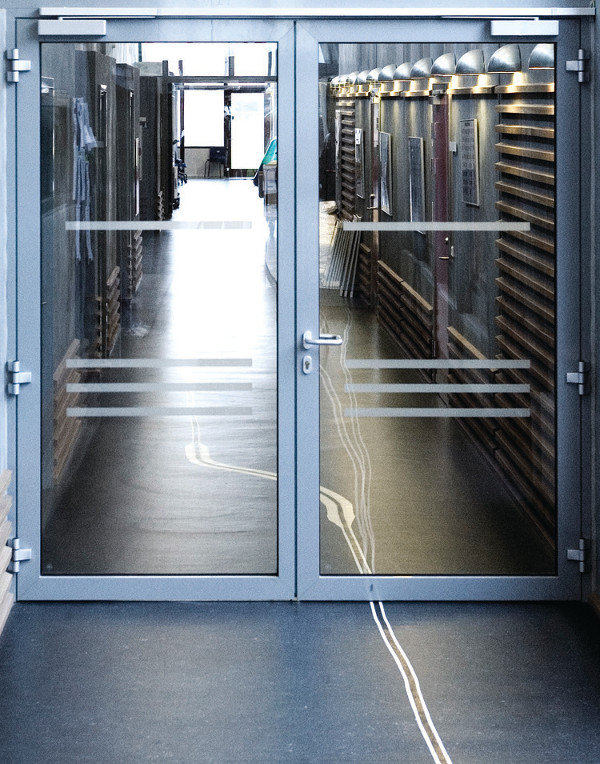

    Aluflam Swinging Door Systems image Aluflam’s fire-doors are now available in 20-45-60-90 min. and can be specified for interior and exterior applications. The doors come with standard US hardware, easy to install, have superior aesthetics and can be supplied in a variety of sizes and finishes.
    PDF Aluflam Swinging Door Systems e-Catalog Videos for Aluflam Swinging Door Systems
  • Storefront Systems
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT
    Aluflam Storefront Vision Wall Systems image Aluflam's fixed storefront vision wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material. They are available in a 60 minute rating for interior and exterior installation. Vision wall products are fully tested and listed by Underwriters Laboratories to UL 263 and UBC 7-4 (1997) standards. All Aluflam fire-rated products are MEA approved for use in the City of New York.
    PDF Aluflam Storefront Vision Wall Systems e-Catalog Videos for Aluflam Storefront Vision Wall Systems
  • Windows
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT
    Aluflam Windows image Aluflam's fixed storefront window frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material. Window products are available in 20, 45, and 60 minute ratings for interior and exterior installation, and are fully tested and listed by Underwriters Laboratories to ANSI/UL 9 and UBC 7-4 (1997) standards. All Aluflam fire-rated products are MEA approved for use in the City of New York.
    PDF Aluflam Windows e-Catalog Videos for Aluflam Windows
  • Finishes
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT
    Finishes image Aluminum framing designs are available in a multitude of finish options. Consider the following:

    Anodizing
    Our basic, but probably the most pristine finish is satin clear anodize. Aluminum profiles are textured prior to the clear anodizing process, which results in a smooth non-directional finish – and the true feeling of Aluminum. We also offer traditional colored anodize finishes such as dark bronze, medium bronze, black, champagne and others.
    Powder coating
    The powder coating process is gaining popularity due to its environmentally friendly character. Our approved powder finishes are processed from Tiger Drylac and Spraylat. This includes architectural finishes with extended warranties.
    Liquid painting
    To meet special specification requirements, we also offer liquid painting such as 50% and 70% fluoropolymer coatings on all our window and door systems.

    All finishing is done before fabrication to assure ultimate adhesion and finish quality, and stringent quality control guidelines are followed throughout the process.
    PDF Finishes e-Catalog Videos for Finishes
  • Gallery
    PRODUCT
    TRADE NAME
    DESCRIPTION
    CONTENT




your name:   password:
(available for clients only)

Last Update: 2014-04-16
