| | SECTION 02820 |
| |
| | FENCES AND GATES |
| |
| | |
| | ** NOTE TO SPECIFIER ** Wheatland Tube Company; electrical conduit, sprinkler/fire suppression, plumbing, process integration piping and fence framework. |
| | . |
| | This section is based on the products of Wheatland Tube Company, which is located at: |
| | 1 Council Avenue
PO Box 608
Wheatland, PA 16161-0608
Toll Free Tel: (800)257-8182
Tel: (724) 342-6851
Fax: (724) 342-0294
Email: marty.brett@wheatland.com
Web: www.wheatland.com.
[ Click Here ] for additional information. |
| | Wheatland Tube Co., a subsidiary of John Maneely Co. founded in 1877, is one of the world's leading manufacturers of continuous weld steel pipe (CW) and electric resistance welded (ERW) steel pipe/tubing and fittings. Wheatland's products comply with all construction specifications and requirements, ASTM, ANSI, UL, NEC and Federal Specifications. Wheatland's products are widely used for electrical conduit, sprinkler/fire suppression, plumbing, process integration piping and fence framework as well as 11 other MasterFormat 2004 applications. Wheatland sister subsidiary, Seminole Tubular Products, manufactures and distributes over 5,000 types of pipe and electrical conduit fittings. |
| |
| | PART 1 | GENERAL |
| |
| | 1.1 | SECTION INCLUDES |
| | ** NOTE TO SPECIFIER ** Delete items below not required for project. |
| |
| | | A. | Chain link fence framework, fabric, and accessories. |
| |
| | | B. | Gates. |
| |
| | 1.2 | RELATED SECTIONS |
| | ** NOTE TO SPECIFIER ** Delete any sections below not relevant to this project; add others as required. |
| |
| | | A. | Section 10160 - Wire Mesh Partitions. |
| |
| | | B. | Section 13700 - Electronic Access Control and Intrusion Detection. |
| |
| | | C. | Section 13700 - Electronic Monitoring and Control. |
| |
| | 1.3 | REFERENCES |
| | ** NOTE TO SPECIFIER ** Delete references from the list below that are not actually required by the text of the edited section. |
| |
| | | A. | ASTM A 121 - Specification for Metallic-Coated Carbon Steel Barbed Wire. |
| |
| | | B. | ASTM A 392 - Specification for Zinc-Coated Steel Chain-Link Fence Fabric. |
| |
| | | C. | ASTM A 491 - Specification for Aluminum-Coated Steel Chain-Link Fabric. |
| |
| | | D. | ASTM A780 - Standard Practice for Repair of Damaged and Uncoated Ares of Hot-Dip Galvanized Coatings. |
| |
| | | E. | ASTM A 817 - Specification for Metallic-Coated Steel Wire for Chain Link Fence Fabric and Marcelled Tension Wire. |
| |
| | | F. | ASTM A 824 - Specification for Metallic-Coated Steel Marcelled Tension Wire for Use With Chain Link. |
| |
| | | G. | ASTM F 552 - Standard Terminology Relating to Chain Link Fencing. |
| |
| | | H. | ASTM F 567 - Standard Practice for Installation of Chain Link Fence. |
| |
| | | I. | ASTM F 626 - Specification for Fence Fittings. |
| |
| | | J. | ASTM F 668 - Specification for Polymer Coated Chain Link Fence Fabric. |
| |
| | | K. | ASTM F 900 - Specification for Industrial and Commercial Swing Gates. |
| |
| | | L. | ASTM F 934 - Specification for Standard Colors for Polymer-Coated Chain Link. |
| |
| | | M. | ASTM F 1043 - Specification for Strength and Protective Coatings of Metal Industrial Chain Link Fence Framework. |
| |
| | | N. | ASTM F 1083-06 - Specification for Pipe, Steel, Hot-Dipped Zinc-Coated (Galvanized) Welded for Fence Structures. |
| |
| | | O. | ASTM F 1184 - Specification for Industrial and Commercial Horizontal Slide Gates. |
| |
| | | P. | ASTM F 1664 - Specification for Poly (Vinyl Chloride) (PVC) and Other Conforming Organic Polymer-Coated Steel Tension Wire Used with Chain-Link Fence. |
| |
| | | Q. | ASTM F 1665 - Specification for Poly (Vinyl Chloride) (PVC) and Other Conforming Organic Polymer-Coated Steel Barbed Wire Used with Chain-Link Fence. |
| |
| | | R. | ASTM F 1910 - Specification for Long Barbed Tape Obstacles. |
| |
| | | S. | ASTM F 1911 - Standard Practice for Installation of Barbed Tape. |
| |
| | | T. | ASTM F 2200 - Specification for Automated Vehicular Gate Construction. |
| |
| | | U. | UL 325 Door, Drapery, Gate, Louver and Window Operators. |
| |
| | 1.4 | SYSTEM DESCRIPTION |
| |
| | | A. | Fence Height: |
| | ** NOTE TO SPECIFIER ** Delete all but one of the following options unless more than one fence height is required. If more than one fence height is required, indicate location on the drawings. |
| | | | 1. | Fabric Height: 3 feet (914 mm). |
| | | | 2. | Fabric Height: 4 feet (1219 mm). |
| | | | 3. | Fabric Height: 5 feet (1524 mm). |
| | | | 4. | Fabric Height: 6 feet 1829 mm). |
| | | | 5. | Fabric Height: 7 feet (2134 mm). |
| | | | 6. | Fabric Height: 8 feet (2438 mm). |
| | | | 7. | Fabric Height: 9 feet (2743 mm). |
| | | | 8. | Fabric Height: 10 feet (3048 mm). |
| | | | 9. | Fabric Height: 11 feet (3353 mm). |
| | | | 10. | Fabric Height: 12 feet (3658 mm). |
| | | | 11. | Fabric Height: 13 feet (3962 mm). |
| | | | 12. | Fabric Height: 14 feet (4267 mm). |
| | | | 13. | Fabric Height: 15 feet (4572 mm). |
| | | | 14. | Fabric Height: 16 feet (4877 mm). |
| | | | 15. | Fabric Height: 6 feet (1829 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 16. | Fabric Height: 7 feet (2134 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 17. | Fabric Height: 8 feet (2438 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 18. | Fabric Height: 9 feet (2743 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 19. | Fabric Height: 10 feet (3048 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 20. | Fabric Height: 11 feet (3353 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 21. | Fabric Height: 12 feet (3658 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 22. | Fabric Height: 13 feet (3962 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 23. | Fabric Height: 14 feet (4267 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 24. | Fabric Height: 15 feet (4572 mm) plus 1 foot (305 mm) barbed wire. |
| | | | 25. | Fabric Height: 16 feet (4877 mm) plus 1 foot (305 mm) barbed wire. |
| |
| | | B. | Line Post Spacings: At intervals not to exceed the following. |
| | ** NOTE TO SPECIFIER ** Delete one of the two following options. |
| | | | 1. | Spacing: 10 feet (3048 mm) on center. |
| | | | 2. | Spacing: 8 feet (2438 mm) on center. |
| |
| | | C. | Rail and Tension Wire Configuration: |
| | ** NOTE TO SPECIFIER ** Delete three of the four following options. |
| | | | 1. | Fence: 1.660 inch (42.2 mm) outer diameter top rail, bottom tension wire. |
| | | | 2. | Fence: 1.660 inch (42.2 mm) outer diameter top and bottom rail. |
| | | | 3. | Fence: Tension wire at top and bottom of fence. |
| | | | 4. | Fence: Tension wire at top of fence, 1.660 inch (42.2 mm) outer diameter bottom rail. |
| |
| | 1.5 | SUBMITTALS |
| |
| | | A. | Submit under provisions of Section 01300. |
| |
| | | B. | Product Data: Manufacturer's data sheets on each product to be used, including: |
| | | | 1. | Material certifications in compliance with the specified material standards. |
| | | | 2. | Preparation instructions and recommendations. |
| | | | 3. | Storage and handling requirements and recommendations. |
| | | | 4. | Installation methods. |
| | | | 5. | Domestic certifications: Material certifications, Made in U.S.A., Buy American Act or Buy America when required. |
| |
| | | C. | Shop Drawings: Plans and details indicating extent of fences, dimensions, cleared area, location of gates, elevation of fence and gates, details of attachments and footings. |
| | ** NOTE TO SPECIFIER ** Delete selection samples if colors have already been selected. |
| |
| | | D. | Selection Samples: For each finish product specified, two complete sets of color chips representing manufacturer's full range of available colors and patterns. |
| |
| | | E. | Verification Samples: For each finish product specified, two samples, minimum size 6 inches (150 mm) square, representing actual product, color, and patterns. |
| |
| | 1.6 | QUALITY ASSURANCE |
| |
| | | A. | Manufacturer Qualifications: Company headquartered in the United States, having U.S. manufacturing plants with at least 5 years experience manufacturing specification quality chain link fence products. |
| |
| | | B. | Installer Qualifications: Company with demonstrated experience installing similar projects and products in accordance with ASTM F 567 and have at least 5 years experience. |
| |
| | | C. | Tolerances: Current published edition of ASTM material specifications tolerances apply. ASTM material specification tolerances supercede any conflicting tolerance. |
| |
| | 1.7 | DELIVERY, STORAGE, AND HANDLING |
| |
| | | A. | Store products in manufacturer's unopened packaging until ready for installation. |
| |
| | | B. | Store and dispose of solvent-based materials, and materials used with solvent-based materials, in accordance with requirements of local authorities having jurisdiction. |
| |
| | PART 2 | PRODUCTS |
| |
| | 2.1 | MANUFACTURERS |
| |
| | | A. | Acceptable Manufacturer: Wheatland Tube Company; 1 Council Avenue, PO Box 608, Wheatland, PA 16161-0608 Toll Free Tel: (800)257-8182 Tel: (724) 342-6851 Fax: (724) 342-0294 Email: marty.brett@wheatland.com Web: www.wheatland.com. |
| | ** NOTE TO SPECIFIER ** Delete one of the following two paragraphs; coordinate with requirements of Division 1 section on product options and substitutions. |
| |
| | | B. | Substitutions: Not permitted. |
| |
| | | C. | Requests for substitutions will be considered in accordance with provisions of Section 01600. |
| |
| | 2.2 | FENCE FRAMEWORK |
| | ** NOTE TO SPECIFIER ** Wind load to be considered when selecting the fence post and post spacing; refer to the text below. Wheatland Tube Co. provides an interactive wind load calculator at www.wheatland.com. |
| |
| | | A. | Design: Refer to drawings. |
| | | | 1. | Member sizes shall comply with design rules specified in chart below. |
| | | | | | | | Item | Fence Height | Outside Diameter | F 1083-06 Sch 40 | F 1043-IC WT-40 | | | | Inches (mm) | "Regular" Weight lb/ft (kg/m) | Weight lb/ft (kg/m) | | | | | | | | Line Post | thru 4 ft. (1.2 m) | 1.900 (48.3) | 2.72 (4.0) | 2.28 (3.39) | | | over 4 to 8 ft. (1.2 to 2.4 m) | 2.375 (60.3) | 3.65 (5.4) | 3.12 (4.64) | | | over 8 to 12 ft. (2.4 to 3.7 m) | 2.875 (73.0) | 5.79 (8.6) | 4.64 (6.91) | | | over 12 to 16 ft. (3.7 to 4.9 m) | 4.000 (101.6) | 9.11 (13.6) | 6.57 (9.78) | | | | | | | | Terminal Post | thru 4 ft. (1.2 m) | 2.375 (60.3) | 3.65 (5.4) | 3.12 (4.64) | | | over 4 to 8 ft. (1.2 to 2.4 m) | 2.875 (73.0) | 5.79 (8.6) | 4.64 (6.91) | | | over 8 to 12 ft. (2.4 to 3.7 m) | 4.000 (101.6) | 9.11 (13.6) | 6.57 (9.78) | | | over 12 to 16 ft. (3.7 to 4.9 m) | 6.625 (168.3) | 18.97 (28.2) | N/A | | | | 8.625 (219.1) | 28.58 (42.5) | N/A | | Rails & Braces | | 1.660 (42.2) | 2.27 (3.4) | 1.84 (2.74) |
|
| | ** NOTE TO SPECIFIER ** Wheatland Tube Co. provides an interactive wind load calculator at www.wheatland.com |
| |
| | | B. | Windload: Windscreens, privacy slats, fences greater than 12 feet (3658 mm) in height, fences using smaller mesh 3/8 inch (10 mm), 1/2 inch (13 mm) and 5/8 inch (16 mm) mesh and fences using 1 inch (25 mm) mesh greater in height than 8 feet (2438 mm) shall have a wind load force analysis for post selection done, consider using ASTM F 1083-06 High Strength 83000 Grade. |
| |
| | | C. | Post Size: Minimum outside diameter required for fence height. |
| | ** NOTE TO SPECIFIER ** Delete all but one of the following options unless more than one fence height is required. If more than one fence height is required, indicate location on the drawings. |
| | | | 1. | Fabric Height: 3 feet (914 mm); line post 1.90 inch (48 mm) diameter, terminal post 2.375 inch (60 mm) diameter. |
| | | | 2. | Fabric Height: 4 feet (1219 mm); line post 1.90 inch (48 mm) diameter, terminal post 2.375 inch (60 mm) diameter. |
| | | | 3. | Fabric Height: 5 feet (1524 mm); line post 1.90 inch (48 mm) diameter, terminal post 2.375 inch (60 mm) diameter. |
| | | | 4. | Fabric Height: 6 feet 1829 mm); line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 5. | Fabric Height: 7 feet (2134 mm); line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 6. | Fabric Height: 8 feet (2438 mm); line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 7. | Fabric Height: 9 feet (2743 mm); line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 8. | Fabric Height: 10 feet (3048 mm); line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 9. | Fabric Height: 11 feet (3353 mm); line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 10. | Fabric Height: 12 feet (3658 mm); line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 11. | Fabric Height: 13 feet (3962 mm); line post 4.000 inch (102 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 12. | Fabric Height: 14 feet (4267 mm); line post 4.000 inch (102 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 13. | Fabric Height: 15 feet (4572 mm); line post 4.000 inch (102 mm) diameter, terminal post 6.625 inch (168 mm) diameter. |
| | | | 14. | Fabric Height: 16 feet (4877 mm); line post 4.000 inch (102 mm) diameter, terminal post 6.625 inch (168 mm) diameter. |
| | | | 15. | Fabric Height: 6 feet (1829 mm) plus 1 foot (305 mm) barbed wire; line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 16. | Fabric Height: 7 feet (2134 mm) plus 1 foot (305 mm) barbed wire; line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 17. | Fabric Height: 8 feet (2438 mm) plus 1 foot (305 mm) barbed wire; line post 2.375 inch (60 mm) diameter, terminal post 2.875 inch (73 mm) diameter. |
| | | | 18. | Fabric Height: 9 feet (2743 mm) plus 1 foot (305 mm) barbed wire; line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 19. | Fabric Height: 10 feet (3048 mm) plus 1 foot (305 mm) barbed wire; line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 20. | Fabric Height: 11 feet (3353 mm) plus 1 foot (305 mm) barbed wire; line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 21. | Fabric Height: 12 feet (3658 mm) plus 1 foot (305 mm) barbed wire; line post 2.875 inch (73 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 22. | Fabric Height: 13 feet (3962 mm) plus 1 foot (305 mm) barbed wire; line post 4.000 inch (102 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 23. | Fabric Height: 14 feet (4267 mm) plus 1 foot (305 mm) barbed wire; line post 4.000 inch (102 mm) diameter, terminal post 4.000 inch (102 mm) diameter. |
| | | | 24. | Fabric Height: 15 feet (4572 mm) plus 1 foot (305 mm) barbed wire; line post 4.000 inch (102 mm) diameter, terminal post 6.625 inch (168 mm) diameter. |
| | | | 25. | Fabric Height: 16 feet (4877 mm) plus 1 foot (305 mm) barbed wire; line post 4.000 inch (102 mm) diameter, terminal post 6.625 inch (168 mm) diameter. |
| | ** NOTE TO SPECIFIER ** Required for fences higher than 12 feet (3.66 m). Delete if not required. |
| |
| | | D. | Intermediate Rail: 1.660 inches (42 mm) outside diameter required. |
| |
| | | E. | Posts and Rails (Line, Terminal, End, Corner, Pull Posts, Rails and Braces): |
| | ** NOTE TO SPECIFIER ** Delete one of the following 2 paragraphs. |
| | | | 1. | Round Steel Pipe and Rail: Schedule 40 ASTM F 1083-06 standard weight pipe. |
| | ** NOTE TO SPECIFIER ** Specify 2.0 oz/ft2 (610 g/m2) for added corrosion protection when required or when specifying ASTM A 392 Class 2, 2.0 oz/ft2 zinc coated chain link fabric. Delete one of the following two paragraphs. |
| | | | | a. | 1.8 oz/ ft2 (550 g/m2) hot dipped galvanized zinc exterior and 1.8 oz/ft2 (550 g/m2) hot dipped galvanized zinc interior coating. |
| | | | | b. | 2.0 oz/ ft2 (610 g/m2) hot dipped galvanized zinc exterior and 2.0 oz/ft2 (610 g/m2) hot dipped galvanized zinc interior coating. |
| | ** NOTE TO SPECIFIER ** Intermediate strength applies only to 6.625 in (168.3 mm) and 8.625 in (219.1 mm) diameter F 1083-06 pipe. High Strength 83000 Grade is 2.76 times stronger than Regular Grade. Its application is added strength for security and fences subjected to wind load. Delete steel pipe grade not required. |
| | | | | c. | Regular Grade: Minimum steel yield strength 30,000 psi (205 MPa). |
| | | | | d. | Intermediate Strength Grade: Minimum steel yield strength 50,000 psi (344 MPa). |
| | | | | e. | High Strength 83000 Grade: Minimum steel strength 83,000 psi (572 MPa). |
| | | | 2. | Round Steel Pipe and Rail: WT-40 ASTM F 1043 cold-rolled electric-resistance pipe comply Materials Design Group IC, minimum steel yield strength 50,000 psi (344 MPa), Type B external coating hot dipped galvanized zinc coating 0.90 oz/ ft2 (270 g/m2) with a clear polymeric overcoat, Type D interior coating, 90 percent zinc-rich having a minimum thickness of 0.3-mils (0.0076 mm). |
| | | | 3. | Rails and Braces: 1.660 inches (42 mm). |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | F. | Polymer Coated Framework: |
| | | | 1. | The polymer coating shall comply with provisions listed in ASTM F 1043. |
| | ** NOTE TO SPECIFIER ** Delete coating type not required. |
| | | | 2. | A minimum 10-mil (0.254 mm) PVC coating shall be fused and adhered to the zinc exterior coating of the framework. |
| | | | 3. | A minimum 10-mil (0.254 mm) Polyolefin coating shall be fused and adhered to the zinc exterior coating of the framework. |
| | ** NOTE TO SPECIFIER ** Delete color not required. |
| | | | 4. | Color shall be dark green in accordance with ASTM F 934. |
| | | | 5. | Color shall be olive green in accordance with ASTM F 934. |
| | | | 6. | Color shall be brown in accordance with ASTM F 934. |
| | | | 7. | Color shall be black in accordance with ASTM F 934. |
| |
| | 2.3 | FENCE FABRIC |
| | ** NOTE TO SPECIFIER ** Delete chain link mesh size not required. Delete mesh not required. |
| |

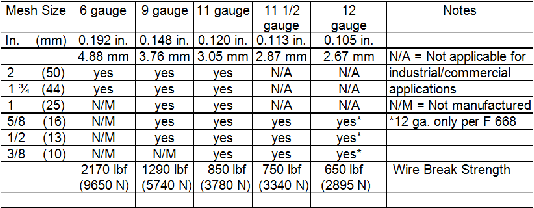

| | | A. | Schedule: Steel chain link mesh sizes and gauges produced in one-piece widths 3 feet (910 mm) to 12 feet (3660 mm). Mesh required shall comply with the following fabrication. |
| | | | | | | | | | Mesh Size | 6 gauge | 9 gauge | 11 gauge | 11 1/2 gauge | 12 gauge | Notes Applicable Specs | | In. (mm) | 0.192 in. | 0.148 in. | 0.120 in. | 0.113 in. | 0.105 in. | | | | 4.88 mm | 3.76 mm | 3.05 mm | 2.87 mm | 2.67 mm | | | 2 (50) | X | X | X | N/A | N/A | ASTM A 392, A 491 F 668 | | 1 3/4 (44) | X | X | X | N/A | N/A | ASTM A 392, A 491 F 668 | | 1 (25) | N-M | X | X | N/A | N/A | ASTM A 392, A 491 F 668 | | 5/8 (16) | N-M | N-M | X | X | X | All except A 392 Class 2, 2.0 oz/ ft2 (610 g/m2) | | 1/2 (13) | N-M | N-M | X | X | X | All except A 392 Class 2, 2.0 oz/ ft2 (610 g/m2) | | 3/8 (10) | N-M | N-M | X | X | X | All except A 392 Class 2, 2.0 oz/ ft2 (610 g/m2) | | | | | | | | N-M = not manufactured | | | | | | | | N/A = not applicable for | | Wire gauge break load | 2,170 (9,650 N) | 1,290 (5,740 N) | 850 (3780 N) | 750 (3340 N) | 650 (2890 N) | Industrial/commercial fencing |
|
| | ** NOTE TO SPECIFIER ** Delete chain link coating not required. |
| |
| | | B. | Chain Link Fabric: Zinc-coated conforming to ASTM A 392 Zinc-Coated Class 1 - 1.2 oz/sf (366 g/sm). |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 2 inches (50 mm), 11 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 7. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| | | | 8. | Mesh Size and Gauge: 1 inch (25 mm), 11 gauge wire. |
| | | | 9. | Mesh Size and Gauge: 5/8 inch (16 mm), 11 gauge wire. |
| | | | 10. | Mesh Size and Gauge: 5/8 inch (16 mm), 11-1/2 gauge wire. |
| | | | 11. | Mesh Size and Gauge: 1/2 inch (13 mm), 11 gauge wire. |
| | | | 12. | Mesh Size and Gauge: 1/2 inch (13 mm), 11-1/2 gauge wire. |
| | | | 13. | Mesh Size and Gauge: 3/8 inch (10 mm), 11 gauge wire. |
| | | | 14. | Mesh Size and Gauge: 3/8 inch (10 mm), 11-1/2 gauge wire. |
| |
| | | C. | Chain Link Fabric: Zinc-coated conforming to ASTM A 392 Zinc-Coated Class 2 - 2.0 oz/sf (610 g/sm). |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| |
| | | D. | Chain Link Fabric: Aluminum-coated conforming to ASTM A 491. |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 2 inches (50 mm), 11 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 7. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| | | | 8. | Mesh Size and Gauge: 1 inch (25 mm), 11 gauge wire. |
| | | | 9. | Mesh Size and Gauge: 5/8 inch (16 mm), 11 gauge wire. |
| | | | 10. | Mesh Size and Gauge: 5/8 inch (16 mm), 11-1/2 gauge wire. |
| | | | 11. | Mesh Size and Gauge: 1/2 inch (13 mm), 11 gauge wire. |
| | | | 12. | Mesh Size and Gauge: 1/2 inch (13 mm), 11-1/2 gauge wire. |
| | | | 13. | Mesh Size and Gauge: 3/8 inch (10 mm), 11 gauge wire. |
| | | | 14. | Mesh Size and Gauge: 3/8 inch (10 mm), 11-1/2 gauge wire. |
| |
| | | E. | Chain Link Fabric: Polymer-coated conforming to ASTM F 668 Class 1 extruded. Wire gage specified for polymer coated fabric shall be the steel core wire, not the finish coated diameter. |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 2 inches (50 mm), 11 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 7. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| | | | 8. | Mesh Size and Gauge: 1 inch (25 mm), 11 gauge wire. |
| | | | 9. | Mesh Size and Gauge: 5/8 inch (16 mm), 11 gauge wire. |
| | | | 10. | Mesh Size and Gauge: 5/8 inch (16 mm), 11-1/2 gauge wire. |
| | | | 11. | Mesh Size and Gauge: 5/8 inch (16 mm), 12 gauge wire. |
| | | | 12. | Mesh Size and Gauge: 1/2 inch (13 mm), 11 gauge wire. |
| | | | 13. | Mesh Size and Gauge: 1/2 inch (13 mm), 11-1/2 gauge wire. |
| | | | 14. | Mesh Size and Gauge: 1/2 inch (13 mm), 12 gauge wire. |
| | | | 15. | Mesh Size and Gauge: 3/8 inch (10 mm), 11 gauge wire. |
| | | | 16. | Mesh Size and Gauge: 3/8 inch (10 mm), 11-1/2 gauge wire. |
| | | | 17. | Mesh Size and Gauge: 3/8 inch (10 mm), 12 gauge wire. |
| | ** NOTE TO SPECIFIER ** Delete color not required. |
| | | | 18. | Color shall be dark green in accordance with ASTM F 934. |
| | | | 19. | Color shall be olive green in accordance with ASTM F 934. |
| | | | 20. | Color shall be brown in accordance with ASTM F 934. |
| | | | 21. | Color shall be black in accordance with ASTM F 934. |
| |
| | | F. | Chain Link Fabric: Polymer-coated conforming to ASTM F 668 Class 2a extruded and adhered. Wire gage specified for polymer coated fabric shall be the steel core wire, not the finish coated diameter. |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 2 inches (50 mm), 11 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 7. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| | | | 8. | Mesh Size and Gauge: 1 inch (25 mm), 11 gauge wire. |
| | | | 9. | Mesh Size and Gauge: 5/8 inch (16 mm), 11 gauge wire. |
| | | | 10. | Mesh Size and Gauge: 5/8 inch (16 mm), 11-1/2 gauge wire. |
| | | | 11. | Mesh Size and Gauge: 5/8 inch (16 mm), 12 gauge wire. |
| | | | 12. | Mesh Size and Gauge: 1/2 inch (13 mm), 11 gauge wire. |
| | | | 13. | Mesh Size and Gauge: 1/2 inch (13 mm), 11-1/2 gauge wire. |
| | | | 14. | Mesh Size and Gauge: 1/2 inch (13 mm), 12 gauge wire. |
| | | | 15. | Mesh Size and Gauge: 3/8 inch (10 mm), 11 gauge wire. |
| | | | 16. | Mesh Size and Gauge: 3/8 inch (10 mm), 11-1/2 gauge wire. |
| | | | 17. | Mesh Size and Gauge: 3/8 inch (10 mm), 12 gauge wire. |
| | ** NOTE TO SPECIFIER ** Delete color not required. |
| | | | 18. | Color shall be dark green in accordance with ASTM F 934. |
| | | | 19. | Color shall be olive green in accordance with ASTM F 934. |
| | | | 20. | Color shall be brown in accordance with ASTM F 934. |
| | | | 21. | Color shall be black in accordance with ASTM F 934. |
| |
| | | G. | Chain Link Fabric: Polymer-coated conforming to ASTM F 668 Class 2b fused and adhered. Wire gage specified for polymer coated fabric shall be the steel core wire, not the finish coated diameter. |
| | ** NOTE TO SPECIFIER ** Usually delete all but one chain link mesh size and gauge from list below. Refer to the chart above for guidance. |
| | | | 1. | Mesh Size and Gauge: 2 inches (50 mm), 6 gauge wire. |
| | | | 2. | Mesh Size and Gauge: 2 inches (50 mm), 9 gauge wire. |
| | | | 3. | Mesh Size and Gauge: 2 inches (50 mm), 11 gauge wire. |
| | | | 4. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 6 gauge wire. |
| | | | 5. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 9 gauge wire. |
| | | | 6. | Mesh Size and Gauge: 1-3/4 inches (44 mm), 11 gauge wire. |
| | | | 7. | Mesh Size and Gauge: 1 inch (25 mm), 9 gauge wire. |
| | | | 8. | Mesh Size and Gauge: 1 inch (25 mm), 11 gauge wire. |
| | | | 9. | Mesh Size and Gauge: 5/8 inch (16 mm), 11 gauge wire. |
| | | | 10. | Mesh Size and Gauge: 5/8 inch (16 mm), 11-1/2 gauge wire. |
| | | | 11. | Mesh Size and Gauge: 5/8 inch (16 mm), 12 gauge wire. |
| | | | 12. | Mesh Size and Gauge: 1/2 inch (13 mm), 11 gauge wire. |
| | | | 13. | Mesh Size and Gauge: 1/2 inch (13 mm), 11-1/2 gauge wire. |
| | | | 14. | Mesh Size and Gauge: 1/2 inch (13 mm), 12 gauge wire. |
| | | | 15. | Mesh Size and Gauge: 3/8 inch (10 mm), 11 gauge wire. |
| | | | 16. | Mesh Size and Gauge: 3/8 inch (10 mm), 11-1/2 gauge wire. |
| | | | 17. | Mesh Size and Gauge: 3/8 inch (10 mm), 12 gauge wire. |
| | ** NOTE TO SPECIFIER ** Delete color not required. |
| | | | 18. | Color shall be dark green in accordance with ASTM F 934. |
| | | | 19. | Color shall be olive green in accordance with ASTM F 934. |
| | | | 20. | Color shall be brown in accordance with ASTM F 934. |
| | | | 21. | Color shall be black in accordance with ASTM F 934. |
| | ** NOTE TO SPECIFIER ** Standard fabric selvage for 2 inch (50 mm) mesh, 72 inches (1829 mm) high and over is knuckle finish at one end twist at the other, K&T. Fabric less than 72 inches (1829 mm) high, knuckle finish top and bottom, K&K. Manufacturing, safety or quality issues dictate all mesh sizes less than 2 inch (50 mm) have a knuckle selvage for both finishes, K&K. |
| |
| | | H. | Selvage: Manufacturer's standard fabric selvage. |
| | ** NOTE TO SPECIFIER ** Usually delete all but option from list below. |
| | | | 1. | Fabric Selvage: 2 inch (51 mm) mesh fabric 5 feet (1524 mm) and less, K&K selvage. |
| | | | 2. | Fabric Selvage: 2 inch (51 mm) mesh fabric 6 feet (1829 mm) and greater, K&T selvage or for safety purposes K&K. |
| | | | 3. | Fabric Selvage: 1-3/4 inch (44 mm) mesh fabric all heights, K&K selvage. |
| | | | 4. | Fabric Selvage: 1 inch (25 mm) mesh fabric all heights, K&K selvage. |
| | | | 5. | Fabric Selvage: 5/8 inch (16 mm) mesh fabric all heights, K&K selvage. |
| | | | 6. | Fabric Selvage: 1/2 inch (13 mm) mesh fabric all heights, K&K selvage. |
| | | | 7. | Fabric Selvage: 3/8 inch (10 mm) mesh fabric all heights, K&K selvage. |
| |
| | 2.4 | TENSION WIRE |
| |
| | | A. | Metallic coated steel marcelled tension wire per ASTM 824 shall be 7 gauge (0.177 in.) (4.50 mm) and have a similar coating to that of the chain link fabric. |
| |
| | | B. | Polymer coated steel tension wire per ASTM F 1664, shall a have 7 gauge (0.177 in.) (4.50 mm) core wire, color and coating same as the chain link fabric. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | 2.5 | BARBED WIRE |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | A. | Metallic coated steel barbed wire to be a similar metallic coating to that of the chain link fabric in compliance with ASTM A 121, Design Number 12-4-5-14R, double 12-1/2 gauge (0.099 in.) (2.51 mm) twisted strand wire, with 4 point 14 gauge (0.080 in.) (2.03 mm) barbs spaced 5 inches (127 mm) on center. |
| | ** NOTE TO SPECIFIER ** Delete coating not required. |
| | | | 1. | Aluminum-coated, coating Type A having a strand coating 0.30 oz/sf (90 g/sm) with aluminum alloy barbs. |
| | | | 2. | Zinc-coated, coating Type Z, Class 3, strand coating 0.80 oz/sf (254 g/sm), barb coating 0.70 oz/sf (215 g/sm) |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | B. | Polymer coated barbed wire shall comply with ASTM A 1665 the strand wire to have a similar coating and color to that of the chain link fabric. |
| | ** NOTE TO SPECIFIER ** Delete barb material not required. |
| | | | 1. | Four point barbs shall be zinc-coated steel. Barbs are not polymer coated. |
| | | | 2. | Four point barbs shall be aluminum alloy. Barbs are not polymer coated. |
| | ** NOTE TO SPECIFIER ** Delete barb spacing not required. |
| | | | 3. | Barb spacing shall be Type I Standard barb spacing 5 inches (127 mm) centers. |
| | | | 4. | Barb spacing shall be Type II High Security barb spacing 3 inches (76 mm) centers. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | 2.6 | BARBED TAPE |
| |
| | | A. | Stainless steel long barbed tape shall comply with ASTM F 1910. |
| | ** NOTE TO SPECIFIER ** Based on the security level required select the following from the table listed in ASTM F 1910. |
| | | | 1. | Security Level: |
| | | | 2. | Description: |
| | | | 3. | Material: |
| | | | 4. | Diameter: |
| | | | 5. | Core Wire Material: (applies to reinforced product only). |
| | | | 6. | Barb Clusters Per Loop: |
| | | | 7. | Coil Loops: |
| | | | 8. | Coil Loop Spacing: |
| | | | 9. | Coil Length: |
| | | | 10. | Attachment Points: |
| |
| | 2.7 | FITTINGS |
| |
| | | A. | Tension and brace bands shall be in accordance with ASTM F 626 fabricated of pressed steel having a minimum thickness of 12 gauge (0.105 inch) (2.67 mm), a minimum width of 3/4 inch (19 mm) and a minimum zinc coating of 1.20 oz/sf (366 g/sm). Bands shall be supplied with 5/16 inch (7.94 mm) galvanized steel carriage bolts. |
| |
| | | B. | Terminal post caps, line post loop tops, rail and brace ends, boulevard clamps and rail sleeves shall be pressed steel, galvanized after fabrication having a minimum zinc coating of 1.20 oz/sf (366 g/sm) steel in accordance with ASTM F 626. |
| |
| | | C. | Truss rod assembly shall comply with ASTM F 626 consisting of a 3/8 inch (9.53 mm) diameter steel rod with a pressed steel tightener capable of withstanding a tension of 2,000 lb (970 kg). The rod and the tightener shall have a minimum zinc coating of 1.2 oz/sf (366 g/sm). |
| |
| | | D. | Tension bars shall be per ASTM F 626 galvanized steel, one-piece length, 2 inches (50 mm) less than the fabric height having a minimum zinc coating of 1.2 oz./sf (366 g/sm). Bars for 2 inches (50 mm) and 1-3/4 inches (44 mm) mesh shall have a minimum cross section of 3/16 inch (4.8 mm) by 3/4 inch (19 mm). Bars for 1 inch (25 mm) mesh shall have a cross section of 1/4 inch (6.4 mm) by 3/8 inch (9.5 mm). Small mesh 3/8 inch (10 mm), 1/2 inch (13 mm) and 5/8 inch (16 mm) shall be attached (sandwiched) to the terminal post using a galvanized steel strap having a minimum cross section of 2 inches (51 mm) by 3/16 inch (4.8 mm) provided with holes spaced 15 inches (381 mm) on center to accommodate 5/16 inch (7.9 mm) carriage bolts which will be inserted thru the strap the mesh and thru the terminal post. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | E. | Barbwire arms shall be in accordance with ASTM F 626, pressed steel galvanized after fabrication with a minimum zinc coating of 1.20 oz/sf (366 g/sm). |
| | ** NOTE TO SPECIFIER ** Delete type not required. |
| | | | 1. | Type I - single 45 degree arm for three strands of barbed wire. |
| | | | 2. | Type II - single vertical arm for three strands of barbed wire. |
| | | | 3. | Type III - V shaped arm for six strands of barbed wire. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | F. | Polymer coated color fittings shall comply with ASTM F 626 having a polymer coating with a thickness of 0.006 inch (0.152 mm) which has been fused and adhered to the galvanized surface of the fittings. Color to match the fabric and framework. |
| |
| | 2.8 | TIE-WIRE AND HOG RINGS |
| |
| | | A. | Tie Wire and Hog Rings: Galvanized minimum zinc coating 1.20 oz/sf (366 g/sm), steel wire in compliance with ASTM F 626. |
| | ** NOTE TO SPECIFIER ** Delete size not required. |
| |
| | | B. | Tie wires shall be fabricated from 11 gauge (0.120 in.) (3.05 mm) wire. |
| |
| | | C. | Tie wires shall be fabricated from 9 gauge (0.148 in.) (3.76 mm) wire. |
| |
| | | D. | Hog rings shall be 9 gauge (0.148 in.) (3.76 mm). |
| | ** NOTE TO SPECIFIER ** Delete if color coating not required. |
| |
| | | E. | Polymer coated, match the coating, class and color to that of the chain link fabric. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | 2.9 | SWING GATES |
| |
| | | A. | Swing Gates shall be fabricated in accordance with ASTM F 900, welded construction. |
| | ** NOTE TO SPECIFIER ** Delete steel pipe material not required. |
| | | | 1. | Gate frame members shall be 1.90 inches OD (48.3 mm) conforming to ASTM F 1083 schedule 40 galvanized steel pipe. |
| | | | 2. | Gate frame members shall be 1.90 inch OD (48.3 mm) conforming to ASTM F 1043 Group IC WT 40 galvanized steel pipe. |
| |
| | | B. | Fabrication: Framework members shall be welded. Frame members shall be spaced a maximum of 8 feet (2440 mm) apart vertically and horizontally. Welded joints are to be protected by applying zinc-rich paint in accordance with ASTM Practice A 780. |
| |
| | | C. | Gate latches shall be fabricated using 5/16 inch (8 mm) thick pressed steel, galvanized after fabrication. Galvanized post and frame hinges shall be manufactured of malleable iron or heavy gauge pressed steel. Gate fabric shall be as specified for the fence system. |
| | ** NOTE TO SPECIFIER ** Enter gate leaf width and height, select gate configuration and delete all but one post outside diameter. Refer to chart for guidance. If more than one gate size, retain appropriate information. |
| |
| | | D. | Gate Configuration: |
| | ** NOTE TO SPECIFIER ** Delete gate configurations not required. |
| | | | 1. | Single Leaf Gate Configuration: |
| | ** NOTE TO SPECIFIER ** Delete gate opening sizes not required. |
| | | | | a. | Gate Opening: 3 ft. (0.9 m). |
| | | | | b. | Gate Opening: 4 ft. (1.2 m). |
| | | | | c. | Gate Opening: 5 ft. (1.5 m). |
| | | | | d. | Gate Opening: 6 ft. (1.8 m). |
| | | | | e. | Gate Opening: 7 ft. (2.1 m). |
| | | | | f. | Gate Opening: 8 ft. (2.4 m). |
| | | | | g. | Gate Opening: 9 ft. (2.7 m). |
| | | | | h. | Gate Opening: 10 ft. (3.0 m). |
| | | | | i. | Gate Opening: 11 ft. (3.4 m). |
| | | | | j. | Gate Opening: 12 ft. (3.7 m). |
| | | | | k. | Gate Opening: 13 ft. (4.0 m). |
| | | | | l. | Gate Opening: 14 ft. (4.3 m). |
| | | | | m. | Gate Opening: 15 ft. (4.6 m). |
| | | | | n. | Gate Opening: 16 ft. (4.9 m). |
| | | | | o. | Gate Opening: 17 ft. (5.2 m). |
| | | | | p. | Gate Opening: 18 ft. (5.5 m). |
| | | | | q. | Gate Opening: 19 ft. (5.8 m). |
| | | | | r. | Gate Opening: 20 ft. (6.1 m). |
| | | | | s. | Gate Opening: 21 ft. (6.4 m). |
| | | | | t. | Gate Opening: 22 ft. (6.7 m). |
| | | | | u. | Gate Opening: 23 ft. (7.0 m). |
| | | | | v. | Gate Opening: 24 ft. (7.3 m). |
| | | | 2. | Double Leaf Gate Configuration: |
| | ** NOTE TO SPECIFIER ** Delete gate opening sizes not required. |
| | | | | a. | Gate Opening: 6 ft. (1.8 m). |
| | | | | b. | Gate Opening: 8 ft. (2.4 m). |
| | | | | c. | Gate Opening: 10 ft. (3.0 m). |
| | | | | d. | Gate Opening: 12 ft. (3.7 m). |
| | | | | e. | Gate Opening: 14 ft. (4.3 m). |
| | | | | f. | Gate Opening: 16 ft. (4.9 m). |
| | | | | g. | Gate Opening: 18 ft. (5.5 m). |
| | | | | h. | Gate Opening: 20 ft. (6.1 m). |
| | | | | i. | Gate Opening: 22 ft. (6.7 m). |
| | | | | j. | Gate Opening: 24 ft. (7.3 m). |
| | | | | k. | Gate Opening: 26 ft. (7.9 m). |
| | | | | l. | Gate Opening: 28 ft. (8.5 m). |
| | | | | m. | Gate Opening: 30 ft. (9.1 m). |
| | | | | n. | Gate Opening: 32 ft. (9.8 m). |
| | | | | o. | Gate Opening: 34 ft. (10.4 m). |
| | | | | p. | Gate Opening: 36 ft. (11.0 m). |
| | | | | q. | Gate Opening: 38 ft. (11.6 m). |
| | | | | r. | Gate Opening: 40 ft. (12.2 m). |
| | | | | s. | Gate Opening: 42 ft. (12.8 m). |
| | | | | t. | Gate Opening: 44 ft. (13.4 m). |
| | | | | u. | Gate Opening: 46 ft. (14.0 m). |
| | | | | v. | Gate Opening: 48 ft. (14.6 m). |
| | ** NOTE TO SPECIFIER ** Delete height/barbed wire option not required. |
| | | | | w. | Gate Height, No Barbed Wire: 4 ft. (1.2 m). |
| | | | | x. | Gate Height, No Barbed Wire: 5 ft. (1.5 m). |
| | | | | y. | Gate Height, No Barbed Wire: 6 ft. (1.8 m). |
| | | | | z. | Gate Height, No Barbed Wire: 7 ft. (2.1 m). |
| | | | | aa. | Gate Height, No Barbed Wire: 8 ft. (2.4 m). |
| | | | | ab. | Gate Height, No Barbed Wire: 9 ft. (2.7 m). |
| | | | | ac. | Gate Height, No Barbed Wire: 10 ft. (3.0 m). |
| | | | | ad. | Gate Height, No Barbed Wire: 11 ft. (3.4 m). |
| | | | | ae. | Gate Height, No Barbed Wire: 12 ft. (3.7 m). |
| | | | | af. | Gate Height, With Barbed Wire: 6 ft. (1.8 m) + 1 ft (0.3 m). |
| | | | | ag. | Gate Height, With Barbed Wire: 7 ft. (2.1 m) + 1 ft (0.3 m). |
| | | | | ah. | Gate Height, With Barbed Wire: 8 ft. (2.4 m) + 1 ft. (0.3 m). |
| | | | | ai. | Gate Height, With Barbed Wire: 9 ft. (2.7 m) + 1 ft (0.3 m). |
| | | | | aj. | Gate Height, With Barbed Wire: 10 ft. (3.0 m) + 1 ft (0.3 m). |
| | | | | ak. | Gate Height, With Barbed Wire: 11 ft. (3.4 m) + 1 ft (0.3 m). |
| | | | | al. | Gate Height, With Barbed Wire: 12 ft. (3.7 m) + 1 ft (0.3 m). |
| | ** NOTE TO SPECIFIER ** Select the gatepost diameter based on the gate leaf width and height from table 2.08 B. |
| |
| | | E. | Gateposts shall be schedule 40 galvanized steel pipe per ASTM F 1083-06, Regular Grade. |
| | | | | | Gate fabric height up to and including 6 ft. (1.8m) | | | | | | | | Gate leaf width | Post Outside Diameter | Weight | | | | | | up to 4 ft. (1.2 m) | 2.375 in. (60.3 mm) | 3.65 lb/ft (5.4 kg/m) | | | | | | over 4 ft. to 10 ft. (1.2 to 3.05 m) | 2.875 in. (73.0 mm) | 5.79 lb/ft (8.6 kg/m) | | | | | | over 10 ft. to 18 ft. (3.05 to 5.5 m) | 4.000 in. (101.6 mm) | 9.11 lb/ft (13.6 kg/m) | | | | | | Gate fabric height over 6 ft. to 12 ft. (1.8 to 3.7m) | | | | | | | | Gate leaf width | Post Outside Diameter | Weight | | | | | | up to 6 ft. (1.8 m) | 2.875 in. (73.0 mm) | 5.79 lb/ft (8.6 kg/m) | | | | | | over 6 ft. to 12 ft. (1.8 to 3.7 m) | 4.000 in. (101.6 mm) | 9.11 lb/ft (13.6 kg/m) | | | | | | over 12 ft. to 18 ft. (2.4 to 5.5 m) | 6.625 in. (168.3 mm) | 18.97 lb/ft (28.2 kg/m) | | | | | | over 18 ft. to 24 ft. (5.5 to 7.3 m) | 8.625 in. (219.1 mm) | 28.58 lb/ft (42.5 kg/m) |
|
| | ** NOTE TO SPECIFIER ** Enter gate leaf width and height, select gate configuration and delete all but one post outside diameter. If more than one gate size, retain appropriate information. |
| | | | 1. | Gate Post Outside Diameter: |
| | | | | a. | Gate leaf width up to 4 feet (1219 mm) having a fabric height 3 feet (914 mm) up to 6 feet (1829 mm), gatepost, 2.375 inches (60 mm) O.D. |
| | | | | b. | Gate leaf width over 4 feet (1219 mm) up to 10 feet (2048 mm) having a fabric height 3 feet (914 mm) up to 6 feet (1829 mm), gatepost, 2.875 inches (73 mm) O.D. |
| | | | | c. | Gate leaf width over 10 feet (2048 mm) up to 18 feet (5486 mm) having a fabric height 3 feet (914 mm) up to 6 feet (1829 mm) gate post, 4.000 inches (102 mm) O.D. |
| | | | | d. | Gate leaf width up to 6 feet (1829 mm) having a fabric height over 6 feet (1829 mm) up to 12 feet (3658 mm), gate post, 2.875 inches (73 mm) O.D. |
| | | | | e. | Gate leaf width over 6 feet (1829 mm) up to 12 feet (3658 mm) having a fabric height over 6 feet (1829 mm) up to 12 feet (3658 mm), gate post, 4.000 inches (102 mm) O.D. |
| | | | | f. | Gate leaf width over 12 feet (3658 mm) up to 18 feet (5486 mm) having a fabric height over 6 feet (1829 mm) up to 12 feet (3658 mm), gate post, 6.625 inches (168 mm) O.D. |
| | | | | g. | Gate leaf width over 18 feet (5486 mm) up to 24 feet &7315 mm) having a fabric height over 6 feet (1829 mm) up to 12 feet (3658 mm), gate post, 8.625 inches (219 mm) O.D. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | | F. | Polymer coated gate frames and gateposts shall match the coating type and color specified for the fence framework. Moveable parts such as hinges, latches and drop rods may be field coated using a liquid polymer field touch up coating. |
| |
| | | G. | Operation: |
| | ** NOTE TO SPECIFIER ** Delete type not required. |
| | | | 1. | Manual gate operation. |
| | | | 2. | Electric gate operation, size of motor as recommended by manufacturer. Comply with the safety requirements of ASTM F 2200 and UL 325. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| |
| | 2.10 | SLIDE GATES |
| | ** NOTE TO SPECIFIER ** Delete horizontal slide gates if not required. |
| |
| | | A. | Overhead Slide Gates: ASTM F 1184, Type 1. |
| | ** NOTE TO SPECIFIER ** Delete gate member material not required. |
| | | | 1. | Material: Gate members to be minimum 1.900 inches (48 mm) O.D. ASTM F 1083-06 schedule 40 galvanized steel pipe. |
| | | | 2. | Material: Gate members to be minimum 1.900 inches (48 mm) O.D. ASTM F 1043 Group IC WT 40 galvanized steel pipe. |
| | | | 3. | Fabrication: Members to be welded and spaced no more than 8 feet (2440 mm) apart, vertically and horizontally. Welds of the galvanized steel members are to be protected by zinc-rich paint in accordance with ASTM Practice A 780. |
| | | | 4. | The overhead beam or structure shall be designed to support the dead and live load of the gate panel and wind load with a safety factor for possible icing load. The support beam or structure shall be galvanized or receive proper corrosion protection. |
| | | | 5. | Gates shall be designed to open or close with an initial maximum pull force of 40 lb (18.14 kg). Chain link fabric shall be of the same specification as that of the fence system. Gate latch shall be 5/16 inch (8 mm) galvanized steel. Galvanized steel drop bars are to be provided with double gates. |
| | ** NOTE TO SPECIFIER ** Delete gate configurations not required. If more than one gate size, retain appropriate information. |
| | | | 6. | Gate Configuration: Single overhead slide gate. |
| | ** NOTE TO SPECIFIER ** Delete gate opening sizes not required. |
| | | | | a. | Gate Opening: 3 ft. (0.9 m). |
| | | | | b. | Gate Opening: 4 ft. (1.2 m). |
| | | | | c. | Gate Opening: 5 ft. (1.5 m). |
| | | | | d. | Gate Opening: 6 ft. (1.8 m). |
| | | | | e. | Gate Opening: 7 ft. (2.1 m). |
| | | | | f. | Gate Opening: 8 ft. (2.4 m). |
| | | | | g. | Gate Opening: 9 ft. (2.7 m). |
| | | | | h. | Gate Opening: 10 ft. (3.0 m). |
| | | | | i. | Gate Opening: 11 ft. (3.4 m). |
| | | | | j. | Gate Opening: 12 ft. (3.7 m). |
| | | | | k. | Gate Opening: 13 ft. (4.0 m). |
| | | | | l. | Gate Opening: 14 ft. (4.3 m). |
| | | | | m. | Gate Opening: 15 ft. (4.6 m). |
| | | | | n. | Gate Opening: 16 ft. (4.9 m). |
| | | | | o. | Gate Opening: 17 ft. (5.2 m). |
| | | | | p. | Gate Opening: 18 ft. (5.5 m). |
| | | | | q. | Gate Opening: 19 ft. (5.8 m). |
| | | | | r. | Gate Opening: 20 ft. (6.1 m). |
| | | | | s. | Gate Opening: 21 ft. (6.4 m). |
| | | | | t. | Gate Opening: 22 ft. (6.7 m). |
| | | | | u. | Gate Opening: 23 ft. (7.0 m). |
| | | | | v. | Gate Opening: 24 ft. (7.3 m). |
| | | | | w. | Gate Opening: 25 ft. (7.6 m). |
| | | | | x. | Gate Opening: 26 ft. (7.9 m). |
| | | | | y. | Gate Opening: 27 ft. (8.2 m). |
| | | | | z. | Gate Opening: 28 ft. (8.5 m). |
| | | | | aa. | Gate Opening: 29 ft. (8.8 m). |
| | | | | ab. | Gate Opening: 30 ft. (9.1 m). |
| | | | | ac. | Gate Opening: 31 ft. (9.5 m). |
| | | | | ad. | Gate Opening: 32 ft. (9.8 m). |
| | | | | ae. | Gate Opening: 33 ft. (10.1 m). |
| | | | | af. | Gate Opening: 34 ft. 10.4 m). |
| | | | | ag. | Gate Opening: 35 ft. (10.7 m). |
| | | | | ah. | Gate Opening: 36 ft. (11.0 m). |
| | | | | ai. | Gate Opening: 37 ft. (11.3 m). |
| | | | | aj. | Gate Opening: 38 ft. (11.6 m). |
| | | | | ak. | Gate Opening: 39 ft. (11.9 m). |
| | | | | al. | Gate Opening: 40 ft. (12.2 m). |
| | | | 7. | Gate Configuration: Double horizontal overhead slide gate. |
| | ** NOTE TO SPECIFIER ** Delete gate opening sizes not required. |
| | | | | a. | Gate Opening: 6 ft. (1.8 m). |
| | | | | b. | Gate Opening: 8 ft. (2.4 m). |
| | | | | c. | Gate Opening: 10 ft. (3.0 m). |
| | | | | d. | Gate Opening: 12 ft. (3.7 m). |
| | | | | e. | Gate Opening: 14 ft. (4.3 m). |
| | | | | f. | Gate Opening: 16 ft. (4.9 m). |
| | | | | g. | Gate Opening: 18 ft. (5.5 m). |
| | | | | h. | Gate Opening: 20 ft. (6.1 m). |
| | | | | i. | Gate Opening: 22 ft. (6.7 m). |
| | | | | j. | Gate Opening: 24 ft. (7.3 m). |
| | | | | k. | Gate Opening: 26 ft. (7.9 m). |
| | | | | l. | Gate Opening: 28 ft. (8.5 m). |
| | | | | m. | Gate Opening: 30 ft. (9.1 m). |
| | | | | n. | Gate Opening: 32 ft. (9.8 m). |
| | | | | o. | Gate Opening: 34 ft. (10.4 m). |
| | | | | p. | Gate Opening: 36 ft. (11.0 m). |
| | | | | q. | Gate Opening: 38 ft. (11.6 m). |
| | | | | r. | Gate Opening: 40 ft. (12.2 m). |
| | ** NOTE TO SPECIFIER ** Delete height/barbed wire option not required. |
| | | | 8. | Gate Height, No Barbed Wire: |
| | | | | a. | Gate Height, No Barbed Wire: 4 ft. (1.2 m). |
| | | | | b. | Gate Height, No Barbed Wire: 5 ft. (1.5 m). |
| | | | | c. | Gate Height, No Barbed Wire: 6 ft. (1.8 m). |
| | | | | d. | Gate Height, No Barbed Wire: 7 ft. (2.1 m). |
| | | | | e. | Gate Height, No Barbed Wire: 8 ft. (2.4 m). |
| | | | | f. | Gate Height, No Barbed Wire: 9 ft. (2.7 m). |
| | | | | g. | Gate Height, No Barbed Wire: 10 ft. (3.0 m). |
| | | | | h. | Gate Height, No Barbed Wire: 11 ft. (3.4 m). |
| | | | | i. | Gate Height, No Barbed Wire: 12 ft. (3.7 m). |
| | ** NOTE TO SPECIFIER ** Delete height/barbed wire option not required. |
| | | | 9. | Gate Height, Barbed Wire: |
| | | | | a. | Gate Height, With Barbed Wire: 6 ft. (1.8 m) + 1 ft (0.3 m). |
| | | | | b. | Gate Height, With Barbed Wire: 7 ft. (2.1 m) + 1 ft (0.3 m). |
| | | | | c. | Gate Height, With Barbed Wire: 8 ft. (2.4 m) + 1 ft. (0.3 m). |
| | | | | d. | Gate Height, With Barbed Wire: 9 ft. (2.7 m) + 1 ft (0.3 m). |
| | | | | e. | Gate Height, With Barbed Wire: 10 ft. (3.0 m) + 1 ft (0.3 m). |
| | | | | f. | Gate Height, With Barbed Wire: 11 ft. (3.4 m) + 1 ft (0.3 m). |
| | | | | g. | Gate Height, With Barbed Wire: 12 ft. (3.7 m) + 1 ft (0.3 m) |
| | ** NOTE TO SPECIFIER ** Delete under beam clearances not required. |
| | | | 10. | Under Beam Clearance: |
| | | | | a. | Under Beam Clearance: 10 ft. (3.0 m). |
| | | | | b. | Under Beam Clearance: 14 ft. (4.3 m). |
| | | | | c. | Under Beam Clearance: 16 ft. (4.9 m). |
| | | | | d. | Under Beam Clearance: 18 ft. (5.5 m). |
| | | | | e. | Under Beam Clearance: 20 ft. (6.1 m). |
| | | | | f. | Under Beam Clearance: 22 ft. (6.7 m). |
| | | | | g. | Under Beam Clearance: 24 ft. (7.3 m). |
| | ** NOTE TO SPECIFIER ** Delete gate post sizes not required. |
| | | | 11. | Gate Post Size: |
| | | | | a. | Double or single leaf opening 3 feet (914 mm) up to 10 feet (2048 mm), fabric height 5 feet (1524 mm) to 12 feet (3658 mm), under beam clearance up to 14 feet (4267 mm), minimum outside diameter post 2.875 inches (73 mm). |
| | | | | b. | Double or single leaf opening, greater than 10 feet (2048 mm) up to 24 feet (7315 mm), fabric height 5 (1524 mm) feet to 12 feet (3658 mm), under beam clearance up to 24 feet (7315 mm), minimum outside post diameter 4.000 inches (102 mm). |
| | | | | c. | Double or single leaf opening greater than 24 feet (7315 mm) up to 40 feet, (12192 mm) fabric height 5 feet (1524 mm) to 12 feet (3658 mm), under beam clearance up to 24 feet (7315 mm), twin 4.000 inches (102 mm) outside diameter gateposts. The overhead track is supported between the twin posts and the gate slides between the twin posts. |
| | ** NOTE TO SPECIFIER ** Delete if not required. |
| | | | 12. | Polymer Coating: Polymer coated gate frames and gateposts shall match the coating type and color as that specified for the fence framework. Moveable parts such as latches and drop rods may be field coated using liquid polymer coating field touch up provided by the coating manufacturer. |
| | ** NOTE TO SPECIFIER ** Delete type not required. |
| | | | 13. | Operation: Manual. |
| | | | 14. | Operation: Electric; comply with the safety requirements of ASTM F 2200 and UL 325. |
| | ** NOTE TO SPECIFIER ** Delete cantilever gates if not required. Delete cantilever gate type not required. |
| |
| | | B. | Cantilever Slide Gates External Roller Design: ASTM F 1184, Type II, Class 1. |
| | ** NOTE TO SPECIFIER ** Delete gate member material not required. |
| | | | 1. | Material: Gate members to be ASTM F 1083 schedule 40 galvanized steel pipe. Horizontal top and bottom rails 2.375 inch (60.3 mm) O.D., vertical members 1.900 inch O.D. (48.3 mm) maximum 8 feet (2438 mm) on center. |
| | | | 2. | Material: Gate members to be ASTM F 1043 Group IC WT 40 galvanized steel pipe. Horizontal top and bottom rails 2.375 inch (60.3 mm) O.D., vertical members 1.900 inch O.D. (48.3 mm) maximum 8 feet (2438 mm) on center. |
| | | | 3. | Fabrication: Members to be welded and spaced no more than 8 feet (2440 mm) apart, vertically and horizontally. Welds of the galvanized steel members are to be protected by zinc-rich paint in accordance with ASTM Practice A 780. Conform to the minimum deflection performance listed in ASTM 1184. Gates shall be designed to open or close with an initial maximum pull force of 40 lb (18.14 kg). Chain link fabric shall be of the same specification as that of the fence system. |
| | | | 4. | Gate latch shall be 5/16 inch (8 mm) galvanized steel. Galvanized steel drop bars are to be provided with double gates. |
| | | | 5. | Class 1 external roller design cantilever slide gates shall be supplied with top and bottom safety protective guards and safety posts. |
| | ** NOTE TO SPECIFIER ** Delete configurations not required. If more than one gate size, retain appropriate information. |
| | | <
