COMPANY OVERVIEW
ALL PRODUCTS

Insulated Metal Panels

TotalClad MW fire resistant insulated metal panels are single-component insulated metal panels designed specifically for fire resistant wall applications. Featuring a mineral wool core, TotalClad MW provides superior fire performance and achieves 1-, 2- and 3-hour fire ratings. Exterior profiles include: Striated, Heavy Embossed and Micro Planked.


TotalClad Tech Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS DATASHEETS

CENTRIA's Formawall Dimension Series combines unprecedented design freedom with unmatched performance. The Formawall high-performance building envelope system consolidates six wall components into one product offering creating distinct architectural wall profiles to match any building design.

Choose from five distinct architectural wall profiles to create imaginative building envelopes with varying articulations, rhythms and textures. Our Formawall Dimension series panels are a high-performance product that offers best in class flatness. We can color match internally and externally to fit your design needs. These architectural metal panels are available in different shapes and can be custom fabricated for your unique application. Attractive and durable, FORMAVUE windows are engineered to deliver premium performance within our Formawall architectural faCade systems. Seamlessly integrate the industry's highest quality daylighting and ventilation COMPONENTS within your building envelope.

The insulated architectural metal wall panels include a standard red-list free foam core, improving the sustainability of the building environment while improving its fire performance. Our red-list free Formawall architectural metal wall systems are FM 4882-certified at the most stringent level. They surpass the required protocols for the NFPA 285 complete wall assembly test and are the subject of a health product declaration (HPD).


Formawall FWDSĀ® Technical Data Sheet
Formawall FWGXĀ® Technical Data Sheet
Formawall DS58 TDS Technical Data Sheet
Formawall DS59Ā® Technical Data Sheet
Formawall DS60Ā® Technical Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS LEED CERTIFICATIONS DATASHEETS

Expand upon FORMAWALL High Performance Building Envelope System's exceptional performance and aesthetic elements with superior product options and integrated solutions. Through partnerships with leading innovators of daylighting and ventilation components, envelope integration of sunshades, daylighting panels, and louvers is faster, easier, and far more efficient than ever before.


Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS DATASHEETS

CENTRIA's commercial & industrial insulated metal panels deliver the industry's best combination of aesthetics, performance, sustainability and value. These lightweight panels provide tremendous flexibility with long lengths, various finish options and superior weather resistance, as well as vertical installation capability. These panels are the ideal product to create a modern aesthetic for large-scale buildings like warehouses, industrial facilities, schools and shopping centers.


Versawall Features & Benefits:

Versawall insulated metal wall panels add versatility and flexibility by offering a metal panel solution for walls. These lightweight insulated metal composite panels can be installed vertically for long, sleek sight lines, and the lightly planked interior liner works compositely with the face sheet to provide greater strength and allow longer spans.


Versawall VĀ® Technical Data Sheet
Versawall H+Ā® Technical Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS LEED CERTIFICATIONS DATASHEETS

CENTRIA's commercial & industrial insulated metal panels deliver the industry's best combination of aesthetics, performance, sustainability and value. These lightweight panels provide tremendous flexibility with long lengths, various finish options and superior weather resistance, as well as vertical installation capability. These panels are the ideal product to create a modern aesthetic for large-scale buildings like warehouses, industrial facilities, schools and shopping centers.


Versapanel Features & Benefits:

Versapanel insulated metal wall panels add versatility and flexibility by offering a metal panel solution for either walls or roofs. This highly energy-efficient wall system is defined by bold ribs that add an attractive linear definition to large structures.


VersapanelĀ® Technical Data Sheets

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS LEED CERTIFICATIONS DATASHEETS

TotalClad insulated metal wall panels are as durable as they are cost-efficient. Concealed clips and fasteners at the panel's joint offer a clean and uninterrupted aesthetic. These lightweight insulated metal wall panels may be installed vertically for long and sleek sight lines with a wide range of lengths, thicknesses, and exterior profiles and finishes.


TotalCladā„¢ Insulated Metal Panel Technical Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS DATASHEETS

CENTRIA Formavue windows are engineered and built exclusively as a fully integrated component of the FORMAWALL High Performance Building Envelope System. Attractive and highly durable, Formavue windows feature aluminum framing that incorporates a complete thermal break and integral head and sill joinery that marries seamlessly with Formawall panels.



Formavueā„¢ FV-400 Technical Data Sheet
Formavueā„¢ FV-400HR Technical Data Sheet
Formavueā„¢ FV-600 Technical Data Sheet
Formavueā„¢ FV-600KD Technical Data Sheet
Formavueā„¢ FV-650 Technical Data Sheet

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS DATASHEETS

MetalWrap insulated composite backup panels serve as the ultimate backup wall for nearly any type of exterior rainscreen system, from single-skin metal to brick, terra cotta and others. Designed with CENTRIA's innovative ATMP (Advanced Thermal and Moisture Protection) building envelope technology, MetalWrap Integrated Series insulated composite backup panels feature integral attachment systems for multiple materials, making it the perfect choice for mixed-medium exteriors.


MetalWrap panels achieve energy efficiency goals with a single component that eliminates the need for conventional batt or board insulation, exterior gypsum, air barriers, vapor retarders and building wraps. The MetalWrap system's single-component construction also means a single source of responsibility, which leads to less coordination, fewer scheduling and interface issues, and one-step installation.



MetalWrap Integrated Series Technical Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

MetalWrap Long Span provides flexible options for applications that require direct attachment to steel girts up to 6' o.c. The insulated composite backup panel system consists of two steel skins permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water and vapor barriers in a composite assembly.


MetalWrap Long Span Series Features & Benefits:

MetalWrap Long Span provides flexible options for applications that require direct attachment to steel girts up to 6' o.c. It is an insulated composite backup panel system that consists of two steel skins permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water and vapor barriers in a composite assembly. This single component assembly replaces multiple components used for backup wall systems. Various attachment systems are available to accommodate different exterior rainscreen materials using steel subgirts. A minimum of 18-gauge steel studs is recommended for horizontal panels.


MetalWrapā„¢ Long Span Series Technical Data Sheet

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

Features & Benefits:

Utilizing CENTRIA's FORMAVUE FV600 windows, MetalWrap is the only insulated composite backup panel with an integrated window system - further enhancing air and water performance and reducing risk for both the architect and building owner. The windows provide a high-performance, thermally efficient window/panel interface with integrated head, sill and jamb details. The windows also feature large thermal breaks aligned with the panel insulation, as well as additional insulation in the head of the window frame for one of the most efficient systems on the market today.


MetalWrapā„¢ Integrated Series Technical Data Sheet


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

Features & Benefits:

Developed in conjunction with the CS GROUP, INC., the MetalWrap integrated louver system is designed for large areas where louvers are an architectural feature. The system utilizes storm resistant MW-7315 front blades over horizontal MetalWrap Series MR-300 system in the inactive louver area. Both the attachment system and the panel face are painted black, providing a seamless transition between the active and inactive louvers. The most critical areas of performance on a building are often where components meet. That's why CENTRIA provides engineered, integrated solutions to simplify and improve those details - and help architects solve problems efficiently and effectively.


MetalWrapā„¢ Integrated Series Technical Data Sheet



Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

TetraShield 4-in-1 Insulated Sheathing Panels provide an air barrier, moisture barrier, vapor barrier and thermal insulation in a single component. The fastest backup wall solution on the market, TetraShield eliminates the need for separate cavity or outboard insulation, exterior gypsum sheathing, air barriers, vapor retarders and building wraps, while providing excellent thermal efficiency and moisture control for exterior walls.


TetraShield Features & Benefits:

TetraShield is a foam composite panel constructed of two roll-formed steel skins surrounding and entirely bonded to a closed-cell, poured-in-place polyisocyanurate foam core. The exterior steel face and interior steel liner - separated by the foam core - eliminate the chance of a thermal short thus improving the panel's thermal performance. The exterior face is finished with a polyester paint to allow for longer exposure during construction. The facings and flashing tape create a vapor, air and moisture barrier, and provide long-term thermal stability along with the foam core.


TetraShieldā„¢ Technical Data Sheet

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Rainscreen Systems

Concept Series single-skin rainscreen panels feature concealed fasteners and a common-lock joint that allows the panels to be integrated with each other and the CASCADE metal panel system. The panels can be installed vertically or horizontally and have an unbroken appearance that further adds to the product's aesthetic versatility.


Concept Series panels deliver unmatched performance with stand-off clips that provide a ventilation cavity and drain plane behind the panel. Panel clips also allow for thermal and seismic movements. Concept Series also functions as an exceptional rainscreen when installed over CENTRIA's METALWRAP Series insulated composite backup panels. Addition design options include MICROSEAM CORNERS and MICROLINEXTRUSIONS.



CS-200 Series Technical Data Sheets
CS--600 Series Technical Data Sheets

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS LEED DATASHEETS

IW Series metal rainscreen panels eliminate exposed fasteners for a clean, unbroken aesthetic in a variety of stucco embossed or smooth finishes. The panels also feature a common-lock joint design that makes interesting visual effects possible and are an excellent option for both new construction and retrofit projects. And with the ability to install the panels year-round, installation time is shortened, permitting fast-track scheduling.



IW-10A, to IW-15A Technical Data Sheet
IW-20A & IW21A Technical Data Sheet
IW-30A & IW-31A Technical Data Sheet
IW-40A & IW-41A Technical Data Sheet

Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS

Lend your next rainscreen project an innovative, sleek aesthetic accent with seamless panel corners, eye-catching extrusions, integrated louvers or sweeping curves.


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

MetalWrap insulated composite backup panels serve as the ultimate backup wall for nearly any type of exterior rainscreen system, from single-skin metal to brick, terra cotta and others. Designed with CENTRIA's innovative ATMP (Advanced Thermal and Moisture Protection) building envelope technology, MetalWrap Integrated Series insulated composite backup panels feature integral attachment systems for multiple materials, making it the perfect choice for mixed-medium exteriors.


MetalWrap panels achieve energy efficiency goals with a single component that eliminates the need for conventional batt or board insulation, exterior gypsum, air barriers, vapor retarders and building wraps. The MetalWrap system's single-component construction also means a single source of responsibility, which leads to less coordination, fewer scheduling and interface issues, and one-step installation.


MetalWrapā„¢ Integrated Series Technical Data Sheet


Rated 5 based on 1 product reviews
CAD BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

MetalWrap Long Span provides flexible options for applications that require direct attachment to steel girts up to 6' o.c. The insulated composite backup panel system consists of two steel skins permanently bonded to a poured-in-place foam insulating core. The panel provides thermal, air, water and vapor barriers in a composite assembly.


MetalWrapā„¢ Long Span Series Technical Data Sheet


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS CERTIFICATIONS DATASHEETS

zENTRIA Exposed Fastener metal rainscreens are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. This flexibility, and their excellent negative wind load properties, make the panels an excellent option for both new construction and retrofit projects. And with all-weather installation capability, installation time is shortened, permitting fast-track scheduling.


Econolap 3/4" Technical Data Sheet
Super-Rib Technical Data Sheet
Style-Rib Technical Data Sheet
MR3-36 Technical Data Sheet
BR5-36 Technical Data Sheet
TR4-36 Technical Data Sheet

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS LEED

TetraShield 4-in-1 Insulated Sheathing Panels provide an air barrier, moisture barrier, vapor barrier and thermal insulation in a single component. The fastest backup wall solution on the market, TetraShield eliminates the need for separate cavity or outboard insulation, exterior gypsum sheathing, air barriers, vapor retarders and building wraps, while providing excellent thermal efficiency and moisture control for exterior walls.


TetraShieldā„¢ Technical Data Sheet
TetraShieldā„¢ Fast Spec

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Roof Systems

Structural Design Panels (SDP) provide a versatile, economical solution for low slope roofs with outstanding resistance to wind loads.


SDP 175 Technical Data Sheet

Rated 5 based on 1 product reviews
SPECS CATALOGS VIDEOS LEED

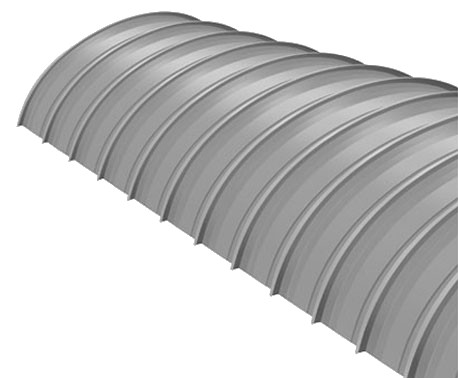

SRS 3 roofing panels offer long panel lengths and versatile installation for your next metal project. The mechanically-seamed panels feature striking sight lines and the option for curved panels to add dramatic aesthetic effects.



SRSĀ® 3 Technical Data Sheet


Rated 5 based on 1 product reviews
SPECS CATALOGS VIDEOS

CENTRIA's Versapanel Roof systems deliver the industry's best combination of aesthetics, performance, sustainability and value. The lightweight panels provide tremendous flexibility with long lengths, various finish options and superior weather resistance, as well as all-weather installation capability. These panels are the ideal product to create a modern aesthetic for large-scale buildings like warehouses, industrial facilities, schools and shopping centers.


Rated 5 based on 1 product reviews
SPECS CATALOGS VIDEOS LEED CERTIFICATIONS DATASHEETS

CENTRIA Exposed Fastener metal rainscreens are extremely versatile panels that can be used as exterior or interior walls, roofs and soffits with ribs that run horizontally or vertically. This flexibility, and their excellent negative wind load properties, make the panels an excellent option for both new construction and retrofit projects. And with all-weather installation capability, installation time is shortened, permitting fast-track scheduling.


Econolap 3/4" Technical Data Sheet
Super-Rib Technical Data Sheet
Style-Rib Technical Data Sheet
MR3-36 Technical Data Sheet
BR5-36 Technical Data Sheet
TR4-36 Technical Data Sheet


Rated 5 based on 1 product reviews
SPECS CATALOGS VIDEOS

Special Products & Systems

EcoScreen Perforated Screenwalls are created through a unique fabrication process that utilizes 20 gauge stainless steel and 0.040" (1) painted aluminum. The result is a 10% - 40% open area that provides an airy aesthetic that controls light and air movement, while elegantly blending industrial and other applications with their surroundings. EcoScreen panels may be installed horizontally or vertically.



Rated 5 based on 1 product reviews
SPECS CATALOGS VIDEOS DATASHEETS

CENTRIA continues to lead the industry trend towards custom aesthetic solutions with Paradigm Custom-Fabricated Metal Panels, a metal panel system with limitless polygonal rib designs and user-designed profiles. Architects can choose from CENTRIA's Paradigm library of standard shapes or tailor a project-specific profile with customized module parameters. CENTRIA's skilled engineers put your custom panels to the test via computer simulation, ensuring that the panel meets adequate design and production parameters.



Paradigm EXP Tech Data

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Incorporate liner panels, subgirts, noncombustible fiberglass insulation and any CENTRIA EXPOSED FASTENER or CONCEALED FASTENER panel for a complete field-assembled wall system. CENTRIA Liner Panels conserve valuable energy to minimize heat loss or gain, provide a flush appearance to building interiors and can be perforated for acoustical performance.



L21 Liner Panel Technical Data Sheet
L-21A Technical Data Sheet

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Our noise control metal panels enhance CENTRIA Rainscreen wall systems with sound absorption. CENTRIA offers an in-house design team who can create custom systems to meet specific project sound attenuation requirements.


CENTRIA Color Chart
Impressions Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Our fire-rated wall panels place layers of gypsum board between the exterior Rainscreen panel and insulation to create UL one-hour through four-hours firewalls based on ASTM E119 fire tests. CENTRIA's Firewall Systems are fire resistant from the inside out and outside in.


CENTRIA Color Chart
Impressions Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Coating Systems

CENTRIA's Impressions coating system is a pre-finished decorative paint system that accurately simulates expensive natural finishes, including wood and specialty metals. Using high performance, field-proven print coating technology, this metal print coat finish system can be used on both steel and aluminum substrates, offering significant cost savings along with lower maintenance than the natural materials they emulate. Available in twelve print coat patterns and colors, the coating is low maintenance and offers exceptional dirt and stain resistance, along with excellent UV resistance. The outstanding overall adhesion and color consistency of Impressions coatings make for a uniform appearance over the life of a building.

CENTRIA Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Pearlescent Micas and Bright Metallics:
These 2- and 3-coat PVDF systems provide the ultimate in modern aesthetics with a pearlescent appearance. Sundance Mica is an excellent, cost-effective alternative to metallic finish systems requiring clear coats, while Sundance AM incorporates dynamic metal flakes in a clear, protective top coat for outstanding metallic effects.


CENTRIA Color Chart


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

A premium, 3-coat fluoropolymer coating that has a special metallic effect plus a clear coat for additional protection. This coating provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention as well as resistance to chalking and chemical degradation.


CENTRIA Color Chart


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

A 2-coat system that provides a pearlescent appearance, and is an excellent, cost effective alternative to metallic finish systems requiring clear coats. Sundance Mica provides outstanding resistance to ultraviolet radiation resulting in exceptional color retention and resistance to chalking and chemical degradation.


CENTRIA Color Chart


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Premium Allura PVDF coatings deliver a low-gloss finish with matte colors. Combined with subtle aggregate textures, the coatings mimic the desirable aesthetics of terra cotta and stone or masonry facades to blend your projects seamlessly with surrounding architecture or make a lasting aesthetic impression.


CENTRIA Color Chart


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

CENTRIA's Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Natural Stone Series features five stone-like, cementitious colors that perfectly match the color and texture of stonework or masonry.


CENTRIA Color Chart


Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

CENTRIA's Allura Coating System is a premium, field-proven fluoropolymer coating featuring a matte, low-gloss finish combined with a subtle aggregate texture. The Allura Coating System is factory coil coated, which makes it highly durable. The Terra Cotta Color Series features five warm, earth tone colors that offer outstanding overall adhesion and color consistency, while perfectly matching the color and texture of terra cotta.


CENTRIA Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Kolorshift is an iridescent PVDF architectural coating that offers a whole new world of design possibilities. The color of the metal coating
changes hues with varying angles of light, dynamically shifting from one color to another as light reaches it.


Kolorshift Series Features & Benefits:

The Kolorshift Series Coating System truly re-imagines the design possibilities of color with exterior metal walls that shift in color depending on the viewing angle or direction of sunlight. The end result is a continuous iridescent color gradient.


CENTRIA Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

The latest addition to CENTRIA's dynamic line of PVDF coating systems, Celestial Effects offers a range of luminous color options for a distinctive aesthetic as well as extreme weather performance. Choose from eight colors with gold or silver metallic flakes for extraordinary color and gloss retention on a variety of substrates.


Celestial Effects Features & Benefits:

Celestial Effects PVDF coating system offers deep, brilliant colors that shimmer in the light, giving your walls a luminous effect. Choose from eight colors with extraordinary color and gloss retention on a variety of substrates. Celestial Effects coating system provides extreme weather performance and resistance to fading, chalking, dirt and stains. Available for coil and extrusion applications, its flexibility and formability allows you to add a unique aesthetic to virtually any project.


CENTRIA Color Chart

Rated 5 based on 1 product reviews
BIM SPECS CATALOGS VIDEOS

Sustainability Resources

CENTRIA goes beyond beauty and performance to provide sustainable design options. Our commitment to sustainability has resulted in some of the most innovative building products on the market today. CENTRIA meets the sustainability needs of customers by developing environmentally friendly products, reducing our overall consumption of energy and harmful chemicals and continuing on the path of social responsibility.


Rated 5 based on 1 product reviews
CATALOGS VIDEOS
