Armortex® has been manufacturing Bullet, Blast and Forced Entry Resistant products for more than thirty years. Our product line includes Armortex® brand fiberglass composite panels, glass and containment glazing, fixed windows and transaction windows, pass-thru transaction equipment (drawers, hoppers, dip trays), speakers, gun ports, gun lockers and man traps. We also fabricate wood and hollow metal doors as well as aluminum storefront systems and related security equipment.
Armortex® products are widely used in courtrooms, government and corporate offices, banks, convenience stores, police stations, military bases, check cashing facilities, cashier booths, prisons and any place where ballistic and attack resistant products are required. U.S. Dept of State FE/BR thermally broken aluminum windows and steel doors are also available.
Through our ISO 9001:2008 quality management system we design and build quality products that protect lives. Our Bullet, Blast and Forced Entry Resistant products are available worldwide, direct from Armortex®. Please contact us for complete information.
ALL PRODUCTS
{{this.show}} {{this.hide}} Bullet Resistant Products
Bullet Resistant Doors
Armortex® Bullet Resistant doors and frames provide the very highest protection while accommodating all door and glazing styles and sizes. Prehung with a heavy-duty continuous hinge, Armortex® bullet resistant doors are available in any configuration. Wood doors are available in protection levels UL 1-8. Hollow metal doors are available in protection levels UL 1-8 including armor piercing and .50 caliber.
Bullet Resistant Wood Doors
Wood doors are available in protection levels UL 1-8.
Bullet Resistant Windows
All Armortex® Bullet Resistant windows are manufactured to the very highest standards, and are available in protection levels UL 1-8 including armor piercing and .50 caliber. Armortex® windows are available in fixed and transaction designs. Available frame materials include prime painted steel, stainless steel and aluminum.

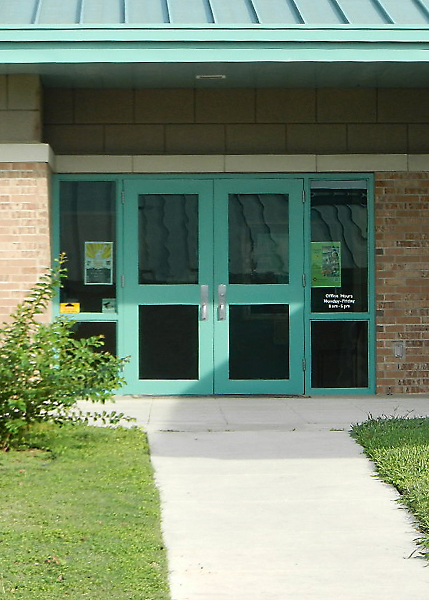

Bullet Resistant Storefront Systems
450 and 44/600 architectural framing systems along with 44/350 entrance doors meet UL 752 Ballistic level 1, 2 & 3. The TH600 architectural framing system and HP 500 Entrance doors meet UL 752 ballistic levels 4, 5 & 8. All architectural aluminum framing systems and doors are available in a verity of anodized, kynar or custom powder coat finishes. Systems come completely fabricated and ship knocked down or can be ship assembled when applicable.
Bullet Resistant Fiberglass Panels
Armortex® is the original manufacturer of UL Listed Bullet Resistant Fiberglass Panels. This material is manufactured using a woven roving ballistic grade cloth we manufacture in-house. The cloth is mechanically injected with resin and placed in a hydraulic hot press, then pressed into flat rigid panels that come in 3′ and 4'' widths and 8'', 9'' and 10'' lengths. By using an anti-ballistic grade fiber in our panels, we can maximize our ballistic performance by consistently achieving a uniform resin to fiber ratio. This allows the proper ply delamination to encapture projectiles.
Specialty Textiles
Armortex® operates a modern, vertically integrated textile operation with the ability to weave and stitch a variety of products such as E-glass, S-glass, Aramids and other specialty materials.
End user applications for our textile products include:
Rigid composite panels for ballistic, blast resistant and forced-entry requirements.
Soft armor applications.
Specialty fabrics suitable for boat, pipe, tank or pool construction.
Transaction Equipment and Accessories
Armortex® products include, but not limited to the following
Custom sizes of selected products available.
|
Custom sizes of selected products available.
|
{{this.show}} {{this.hide}} Blast Protection Products
Blast Resistant Doors
Armortex® offers numerous blast door options. This would include pre-engineered hollow metal blast resistant door designs as well as custom engineered blast doors to meet unique needs.
Steel blast doors are available in pre-engineered or custom engineered designs. These steel blast doors can also include bullet and shrapnel protection as well. Blast door applications may vary from UFC requirements to long duration incidents such as vapor cloud blasts that are typical in the petro chemical industry. Aluminum storefront doors are available in designs up to 10 psi.
Steel blast doors are available in pre-engineered or custom engineered designs. These steel blast doors can also include bullet and shrapnel protection as well. Blast door applications may vary from UFC requirements to long duration incidents such as vapor cloud blasts that are typical in the petro chemical industry. Aluminum storefront doors are available in designs up to 10 psi.
Blast Resistant Windows
Armortex® now offers several product groups of blast windows, some thermally broken. Our model 625 BL blast mitigation window protects against high blast overpressure up to 42psi. The model 625 blast windows are designed for commercial, industrial, military or Department of State applications. Additionally available from Armortex® are our LP blast windows with low over pressure limits of 6 psi in compliance with the UFC 4-010-01 January 2007, GSA-TS01-2003 and ASTM F 1642-04. These models are available in project out, fixed, single hung, double hung, slider and casement. Custom hollow metal designs are also available.
Blast Resistant Storefront
The 44/300, 44/450, 44/600 architectural framing systems and 44/350 entrance doors meet UFC & GSA Blast Requirements. The TH600 architectural framing system and 44/500 entrance doors meet UFC, GSA Blast requirement along with FEMA 361-2008 requirements. All architectural aluminum framing systems and doors are available in a verity of anodized, kynar or custom powder coat finishes. Systems come completely fabricated and ship knocked down or can be ship assembled when applicable.
{{this.show}} {{this.hide}} Forced Entry / Detention
Forced Entry FE/BR Doors
Armortex® FE/BR 15 minute Door/Frame assembly are rated and tested to 15 minute in accordance with SD-STD01.01, Revision G. Flush GDO-15R-ARM-01 prime painted hollow metal doors and frame assemblies along with Vision lite GDT-15R-ARM-04, Slim lite GDT-15R-ARM-02, Half lite GDT-15R-ARM-01 or Double lite GDT-15R-ARM-03 are available.
Forced Entry FE/BR Fixed Windows
Armortex® FE/BR 15 minute fixed windows are rated and tested to 15 minute in accordance with SD-STD01.01, Revision G. Constructed of Armortex® 625 thermally broken 2 ''" x 6'" anodized aluminum framing system. Available fixed 15 min FE/BR aluminum windows GWV-15A-ARM-01 (750mm x 1500 mm) and GWV-15R-ARM-01A (1500mm x 2250mm).
{{this.show}} {{this.hide}} FEMA Doors (Steel and Aluminum)
FEMA 361- ICC 500-08 ICC/NSSA Door Assembly (Steel Doors)
Armortex® FEMA 361 single and double steel door assembly tested to compliance FEMA 361, and ICC 500-08 ICC/NSSA Standard for the Design and Construction of Storm Shelters. Intertek Testing Services NA Inc. Middleton, WI conducted testing for single and double in swinging steel door assembly, for Tornado Resistance.
Armortex® certified FEMA 361 steel doors available as:
Armortex® certified FEMA 361 steel doors available as:
|
FEMA 361-2008, International Code Council (ICC) 500-2008 and Miami-Dade County standards (Aluminum Doors)
Model TH350
Available as a single door or pair of doors
Available as a single door or pair of doors
|
{{this.show}} {{this.hide}} NEW Scuff-Tex Wall Panels
NEW Scuff-Tex Wall Panels
Armortex® A"Scuff-TexA" wall panels A- durable scratch and scuff resistant panels designed to protect walls, partitions and other flat surfaces. Perfect in any commercial, industrial, marine or manufacturing environment where harsh conditions exist and wall damage is a problem.
Scuff-Tex panels are corrosion and rust resistant A- easily attached to an existing wall surface with drywall screws or similar fasteners. Standard dimensions available in 36A" (914mm) and 48A" (1219mm) widths and lengths up to 120A" (3048mm). Nominal thickness is 1/8A" (3.2mm).
Scuff-Tex panels are corrosion and rust resistant A- easily attached to an existing wall surface with drywall screws or similar fasteners. Standard dimensions available in 36A" (914mm) and 48A" (1219mm) widths and lengths up to 120A" (3048mm). Nominal thickness is 1/8A" (3.2mm).
{{this.show}} {{this.hide}} Accessories
Armortex® Voice Port Covers & Speakers
Armortex® Passive Natural Voice Port Covers are available in bullet resistant designs for levels 1 thru 8. They are designed to accommodate glazing thickness of 3/8'" or greater and mounting hole 4″ to 6″ in diameter. A stainless steel anti-contraband device is available and comes in a brushed stainless steel finish.
Armortex® also has available a variety of electronic talk-thru communication devices designed to install in windows or on counter tops. The Electronic window units are available with ballistic protection Levels 1 thru 3.
Armortex® Deal Trays
Transaction Deal Trays are rolled and formed from 16ga stainless steel with a #3 satin brushed finish and can be lined with HI-Hard ballistic steel to meet ballistic protection requirements. Recessed trays "RMDT" are designed to install into a cut out of 2″ high counters with a caped glazing cap running across top middle. Surface mount trays "SMDT" are mounted on top of a counter in a teller line application.
Armortex® Transaction Drawers
Armortex® Transaction drawers are fabricated with brushed stainless steel face and painted steel case to provide long life and trouble-free operation. The drawers are designed to protect the operator when the unit is open or closed. All our drawers are manually operated and come in a variety of sizes, models and bin capacities to fit most transaction window counter or wall installations. A removable plastic money tray is standard with the SS4D and SS10D units. Model SS10D-D is designed without money tray to provide greater capacity and is ideal for detention applications. The drawers are simple to install and attach to a conventional counter top or in wall. Model 6003 unit is available with optional electronic speaker system. All models available with ballistic protection levels 1 thru 3 Consult sales representative for models requiring ballistic protection 4 thru 8.
Armortex® Package Receivers/Passers
Armortex® Steel Package Receivers are utilized as a package pass between a secure and non-secure area. The body is constructed of 12 ga. prime painted steel, Interlocking door system, stainless steel exterior door, door lock and installation flanges are standard features. Custom view lites can be installed in one or both doors to observe packages being passed. Optional stainless steel drip cap for exterior installations is also available Standard size are 18″ x 18″ x 18'". Customs sizes and configuration available with ballistic protection levels 1 thru 8.
Armortex® Transparent Package Receivers offer complete visibility of all transactions and designed to install on counter top. Features include interlocking door system which prevents the simultaneous opening of both doors, automatic door closer on the exterior door and an optional security latch to prevent the forced entry through the inside door during '"non use'" periods. Customs sizes and configuration available with ballistic protection levels 1 thru 3 only.
Armortex® Cart Pass
Armortex® Cart passes are designed to transfer material on wheeled carts from one room to another allowing access to only one room at time. Interlocking door system allows only one door at a time to be opened. Cart passes are constructed of prime painted steel and ship fully assembled with hinges, lockset, transformers, electric strike, door pulls. All cart passes are manufactured to dimensions required to accommodate customer''s equipment with ballistic protection levels 1 thru 4 available.
Armortex® Gun Ports
Gun Ports are typically used in military applications. Armortex® Bullet Resistant gun ports are available in pivot models constructed of stainless steel which can be installed in windows, doors or walls. Sliding model is prime painted steel and is designed for installation in doors or walls. Both models are available with ballistic protection levels 1 thru 8.
{{this.show}} {{this.hide}} Photo Gallery
