COMPANY OVERVIEW

For nearly two decades, SECO SOUTH has been the designer's choice for cable railing systems. Our cable railing systems have been specified by design firms all over the world on projects such as The Houston Astrodome, Bank One Ballpark, Florida Aquarium, Philips Arena and Gold's Gym just to name a few.

Why do designers choose our systems?

  • Economical
  • Extremely transparent
  • Made from type 316 stainless steel
  • Last for many years with very low maintanence

ALL PRODUCTS

{{this.show}} {{this.hide}} Handrails & Guardrails

Aluminum Post Stainless Steel Cable Railing image

Aluminum Post Stainless Steel Cable Railing - System AP1-2000

  • Our AP1-2000 is a cost effective solution to an all stainless steel railing system. This system uses an aluminum powder coated frame and stainless steel cables for the infill. The vertical post are manufactured from 2 3/8" square post spaced at 4'-0" O.C. and the top cap is a 2" x 3 3/4" oval. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 1/8" diameter 1x19 cable with a swage stud adjuster at each end for tensioning.
  • Attachment options include either a 5"x 5" surface mounted base plate, core drill or fascia mount
  • Standard finish is powder coat available in a variety of colors
CAD SPECS LEED
Stainless Steel Cable Handrail image

Stainless Steel Cable Handrail - System FB1-2000

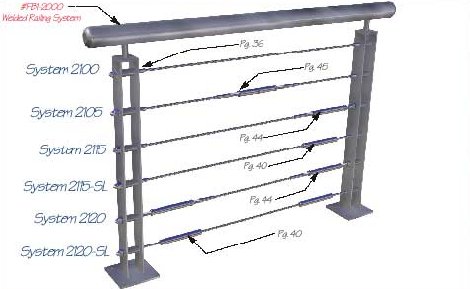

  • Our FB1-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from (2) 1/2" x 1 1/2" flat bars and then connected to each other by a welded tube that is 1/2" in diameter and 1 1/2" inches long. The top cap is manufactured form 1 1/2" diameter tubing. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 3/16" diameter 1x19 cable with stud adjusters at each end for tensioning
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Stainless Steel Cable Handrail image

Stainless Steel Cable Handrail - System FB3-2000

  • Our FB3-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from (2) 1/2" x 1 1/2" flat bars and then connected to each other by a welded tab. The top cap is manufactured form 1 1/2" diameter tubing. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 3/16" diameter 1x19 cable with stud adjusters at each end for tensioning.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Stainless Steel Cable Handrail image

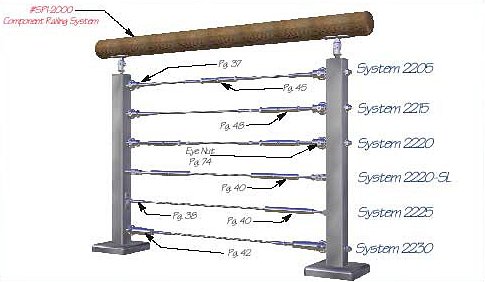

Stainless Steel Cable Handrail - System SP1-2000

  • Our SP1-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from 1 1/2" square tube. The top cap is manufactured form 1 1/2" diameter tube. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 3/16" diameter 1x19 cable with stud adjusters at each end for tensioning.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Stainless Steel Cable Handrail image

Stainless Steel Cable Handrail - System VC1-2000

  • Our VC1-2000 handrail system is an all stainless steel vertical cable railing system. The vertical post are manufactured from 3/4" x 2" flat bar and the horizontal members are manufactured from a 1 1/2" square tube. The top cap is manufactured from a 2" diameter tube. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 1/8" diameter 1x19 cable with a decorative button head fitting at the upper end and a stud adjuster at the lower end for tensioning.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Glass Handrails Panel image

Glass Handrails Panel - System SPG2-2000

  • Our SPG2-2000 handrail system is our glass panel system. The glass is 3/8" thick and is available in clear, smoked and frosted. We also offer the glass with safety film and graphic film layovers. The vertical post are a 1 1/2" square tube equipped with glass clips to support the glass. The top cap is manufactured from 1 1/2" diameter tube. This system is available in both 36" high or 42" high railing.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Glass Panel & Stainless Steel Cable Handrail image

Glass Panel & Stainless Steel Cable Handrail - System SPG1-2000

  • Our SPG1-2000 handrail system is an all stainless steel cable and glass combination railing system. This system was designed for areas where falling objects are of concern such as food courts. The glass panel at the bottom prevents objects from falling to the level below while the cable allows an unobtrusive view and sufficient air flow. This system is available in both 36" high or 42" high railing.
  • The cable infill system is a 3/16" diameter 1x19 cable with a swage stud adjuster at each end for tensioning. The glass panel is 3/8" thick and typically 10" high. The glass is available in clear, smoke and frosted. We also offer the glass with safety film and graphic film layovers.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
SPECS LEED
Stainless Steel Q Line Handrail image

Stainless Steel Q Line Handrail - System DL1-2000

  • Our DL1-2000 handrail system is an all stainless steel design that is ideal for areas that are not required by code to have any infill system. The entire system is manufactured from 1 1/2" diameter tube. This system is available in both 36" high or 42" high railing.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED
Stainless Steel Q Line Handrail image

Stainless Steel Q Line Handrail - System SL1-2000

  • Our SL1-2000 handrail system is an all stainless steel design that is ideal for areas that are not required by code to have any infill system. The post are manufactured from 1 1/2" square tube. The top cap is manufactured form 1 1/2" diameter tube. This system is available in both 36" high or 42" high railing.
  • Attachment options include either a 4"x4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed
CAD SPECS LEED

{{this.show}} {{this.hide}} Decorative Cable Systems

Shelving, Shelf Support image

Shelving, Shelf Support - System 2000

Seco South's decorative cable systems will add a touch of elegance to any decor. Our cable systems are used in a variety of commercial and residential projects.

All of our shelving systems use a 1/8" diameter cable for maximum strength and stability. The cable assemblies are stainless steel while all of the ceiling, floor, wall and shelf support attachments are in electroless nickel is the standard finish, but they are also available in a black, red, blue, and clear anodized finish.

The shelves are available in glass and wood in either a 3/8" or 1/2" thickness. The depth of the shelves are available in both 8" or 12".
Signage image

Signage - System 2000-20

This system uses a leveling device at one end and a swageless fork at the opposite end. The leveling device is fastened to the ceiling and the fork attaches to the sign by drilling holes in the sign and attaching the fork with a clevis pin. The fork will accomodate up to a 1/4" sign thickness.
Trellis image

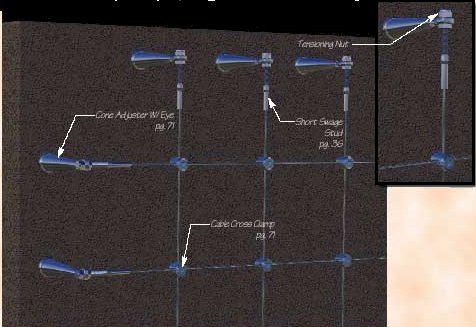

Trellis - System 2000-60

Seco South's cable trellis systems are a perfect solution for supporting foliage or as a decorative statement for any building. These systems can be fastened horizontally or vertically to any type of wall or structure. The all-stainless steel construction makes these systems environmentally safe for foliage and other plant life as well as impervious to salt air and additives sometimes used in sprinkler systems.
CAD SPECS
Window Treatment image

Window Treatment - System 2000-40

Our window treatment systems provide an elegant and unique way to provide support for light-weight curtains. The systems also work well for light-weight shower curtains or support for fabric room dividers.

{{this.show}} {{this.hide}} Cable Handrail Assemblies

Stainless Steel Handrail & Guardrail Cable image

Stainless Steel Handrail & Guardrail Cable - System 2000

For over a decade Seco South has been the leader in cable handrail systems These unique systems offer the designer a whole new approach to interior and exterior railing design capabilities. Our cable railing systems are used on commercial and residential projects all over the world. The incredible transparency as well as the extremely low maintenance is what set these systems apart from other obtrusive and high maintenance railing systems

Our handrail systems satisfy existing code requirements for use nationwide for horizontal or vertical handrail designs.
Vertical Cable Infill Systems Vertical Cable Railing image

Vertical Cable Infill Systems Vertical Cable Railing - UCI 2000

This is a welded railing frame system designed for bolt in or core drilled applications. The vertical balusters are made of 3/8" x 1 1/2" stainless steel flat bar and the horizontal component of the system is a 1 1/2" u-channel. The handrail is a 1 1/2" diameter stainless steel. A #320 non-directional satin finish is standard but other finishes as well as powder coating are also available.

Design Tips for Railings

Stainless Steel Cable Handrail System - Customization Guidelines

Stainless Steel Handrail/guardrail systems require special engineering and tension to redirect a load impact. Please adhere to the following guidelines to assure a safe, durable and an aesthetically appealing stainless steel handrail/guardrail that will last for years. Some special finishes are available upon request.

TERMINATING POSTS
  • Round Post - Minimum wall thickness required .145".
  • Square Post - Minimum wall thickness required .120".
  • Angle Post - Minimum wall thickness required .375".
  • Flat Bar/Plate - Minimum thickness .5" doubled and bridged by additional material between the plates.
  • Wood Post - Minimum of 4" x 6" lumber connected through the 6" side. The lumber should be pressure treated.

{{this.show}} {{this.hide}} Rigging

Structural Cable image

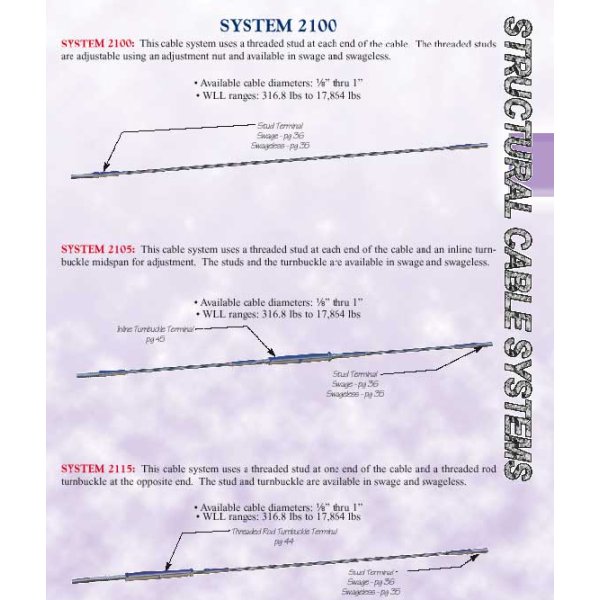

Structural Cable - System 2000

Seco South's wide range of fittings provide numerous solutions to the designer, whether it is to create a visual feature or to provide an almost invisible support structure, we have a cable system to accormmodate any application.
Nitronic 50 Rod image

Nitronic 50 Rod - System 2000

In addition to our tie bar systems manufactured from a type 316L bar stock, we also offer Nitronic 50 Tie Rod systems for applications requiring even higher break strengths and corrosion resistance. Nitronic 50 is a solid tendon of high strength austenitiic 22-13-5alloy stainless steel.
Tie Bar Fittings image

Tie Bar Fittings

Seco South uses only the highest quality of Type 316L stainless steel bar stock to manufacture our tie bar assemblies. Bar stock is manufactured in lengths ranging from 10 - 12 ft depending on the diameter required. For tie bar assemblies that require longer lengths, a tie bar connector is used to join multiple sections together. The completed assembly is available in a polished or satin finish.

The tie bar range has been specifically developed for the needs of modern architectural applications. Seco South offers a range of threaded tie bars that match the quality and appearance of our long established range of rigging equipment. We manufacture complete tie rod assemblies ranging from a 1/4" diametero up to 1 3/8" diameter.
