Backed by over 50 years of experience in skylight manufacturing, Artistic Skylight Domes Ltd. is a proud Canadian manufacturer of standard and custom skylights.

To maintain our high levels of quality control, our management team uses a hands on approach as well as using state of the art machinery for all our in house manufacturing.

As part of our ongoing commitment to our customers we strive to provide quality products, customer service and satisfaction second to none.

All Artistic Skylights meet or exceed Canadian Government Specifications (CAN/CGSB-63, 14-M89) and are available in a large selection of standard sizes as well as a wide variety of custom sizes, shapes and colours for all residential, commercial and industrial applications.

ALL PRODUCTS

{{this.show}} {{this.hide}} Artistic Skylights

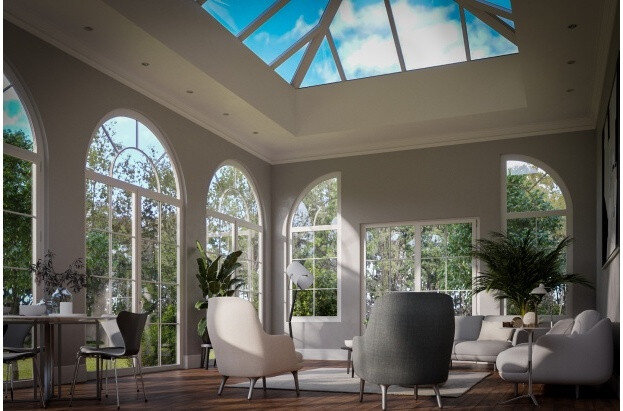

Residential Skylights

SPECS CATALOGS VIDEOS LEED

Commercial Skylights

SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Commercial Pre-fabricated, Insulated Curb Skylight

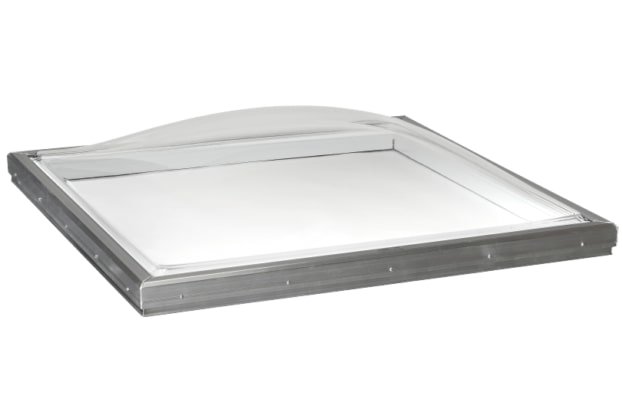

Insulated Curb Skylight (for flat roofs) - Model CL

Features:

Glazing available in sealed double or triple acrylic domes of clear, white, bronze
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)
Retaining cap frame shall be extruded, mill finish (optional baked enamel)
Curb shall be 9'" high (optional 12'") mill finish aluminum, 2 pieces construction of 0.50 outer wall and inner wall, with 2'" thick fiber glass insulation and 3'" aluminum mounting flange

CAD BIM SPECS CATALOGS VIDEOS LEED

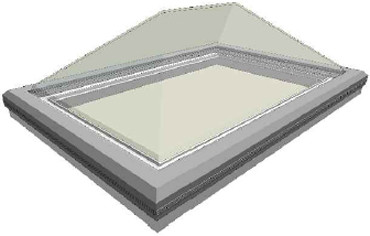

Insulated Curb Skylight(for flat roofs) - Model-CL-FF

Features:

Pyramid skylight with aluminum curb frame and vinly thermal break
Available in sealed double acrylic pyramids ( or sealed triple pyramids) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Curb shall be 9'" high (optional 12'") mill finish aluminum, 2 pieces construction of 0.50 outer wall and inner wall, with 2'" thick fiber glass insulation and 3'" aluminum mounting flange

CAD BIM SPECS CATALOGS VIDEOS LEED

Insulated Curb Skylight(for flat roofs) - Model T-CL

Skylight designed to be installed on flat roofs. These skylights come complete with insulated aluminum curb and mount directly over roof opening.

BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Commercial Unit Dome Curb Mount Skylight

Dome Curb Mount Skylight (Flat roof detail) - Model FF

Dome Skylight Features:

Sealed double acrylic dome skylight ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy .

CAD BIM SPECS CATALOGS VIDEOS LEED

Dome Curb Mount Skylight (Slope roof detail) - Model FF

Features:

Commercial slope roof skylight dome
Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy

CAD BIM SPECS CATALOGS VIDEOS LEED

Dome Curb Mount Skylight (Flat roof detail) - Model FF (Wide Curb)

Features:
(Wide Curb Commercial Roof Window)

Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy

CAD BIM SPECS CATALOGS VIDEOS LEED

Dome Curb Mount Skylight(Flat roof detail) - Model T-FF

Skylights are suitable for use on all type roofs. Designed for mounting on 1 1/2″ (38mm) or 4″ (102mm) curbs with flashing (by others), these units provide excellent performance in all geographic locations.

BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Glass Curb Mount Skylight

Glass Curb Mount Skylight(flat roof detail) - Model G-FF

Features:

Curb mount Model G-FF is designed for mounting on roofs with minimum 3:12 pitch
Consisting of corrosion resistant extruded aluminum curb frame

BIM SPECS CATALOGS VIDEOS LEED

Glass Curb Mount Skylight(Slope roof detail) - Model G-FF (Wide Curb)

Skylights are suitable for use on all types of slope roofs with minimum slope requirement of 3:12. Designed for mounting on 1 1/2″ (38mm) curbs with flashing (by others), these units provide excellent performance in all geographic locations.

CAD BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Removable Dome Curb Mount Skylight

Removable Dome Curb Mount Skylight - Model R-FF

Features:

Acrylic Dome Skylights
Available in sealed double acrylic domes (or sealed triple domes) skylight of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame, 6063-T5 alloy, with heliarc
welded corners
Curb frame shall have an extruded rigid vinyl thermal break which incorporates a 5 degree
slope condensation gutter with drainage to exterior
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Comes complete with stainless steel lockable catch

CAD SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Structural Pyramid Skylight

Structural Pyramid Skylight - Model G-P-CF-FF

Features:

Custom configured skylight having a variable pitch between 15 deg. and 85 deg.
Glass glazing/performance:

BIM SPECS CATALOGS VIDEOS LEED

Structural Pyramid Skylight (hip end) - Model G-CU-P-CF-FF

Features:

Custom configured skylight having a variable pitch between 15 deg. and 85 deg.
Glass glazing/performance:

BIM SPECS CATALOGS VIDEOS LEED

Structural Pyramid Skylight(vertical end) - Model G-CU-P-CF-FF-VE (Ridge)

The flexible design makes it easy to achieve larger daylight openings, while providing an excellent alternative as a lightweight assembly to traditional heavy glass systems.

BIM SPECS CATALOGS VIDEOS

Structural Pyramid Skylight - Model MW-P-CF-FF

Skylights are suitable for use on flat roofs only. Designed for mounting on 3″(75mm) or 4″(102mm) curbs with flashing (by others), The flexible design makes it easy to achieve larger daylight openings, while providing an excellent alternative as a lightweight assembly to traditional heavy glass systems.

CAD BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Cold Form Continuous Skylight

Cold Form Continuous Skylight - Model CF-FF-VE (Vertical End)

Designed for mounting on 3″(75mm) or 4″(102mm) curbs with flashing (by others), these units provide excellent performance and flexible design to achieve large daylight openings.

CAD BIM SPECS CATALOGS VIDEOS

Cold Form Continuous Skylight - Model MW-CF-FF-VE (Vertical End)

Designed for mounting on 3″(75mm) or 4″(102mm) curbs with flashing (by others), these units provide excellent performance and flexible design to achieve large daylight openings.

BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Butted Skylights

Butted Skylight - Model FF-Butted

Features:

FF-Butted are suitable for use on flat roofs, providing flexibility to obtain openings by joining two or more skylights in a grid format
Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze

CAD BIM SPECS CATALOGS VIDEOS LEED

Butted Skylight - G-FF-Butted

Features:

FF-Butted are suitable for use on flat roofs, providing flexibility to obtain openings by joining two or more skylights in a grid format
Glass glazing/performance

BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Continuous Skylight

Continuous Skylight - Model CU-FF-DE

Features:

Glazing shall consist of, double acrylic dome ends and curved centre drapes of clear, bronze, or grey
Consisting of corrosion resistant extruded aluminum curb frame, 6063-T5 alloy, with heliarc welded corner

BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Clustered Skylight

Clustered Skylight - Model FF

Features:

FF-Clustered are suitable for use on flat roofs, providing flexibility to obtain openings by joining two or more skylights in a grid format
Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Glass options/performance

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Hip Ridge Continuous Skylight

Hip Ridge Continuous Skylight (hip end) - Model MW-CU-P-CF-FF

Designed for mounting on 3″(75mm) or 4″(102mm) curbs with flashing (by others), The flexible design makes it easy to achieve larger daylight openings, while providing an excellent alternative as a lightweight assembly to traditional heavy glass systems.

CAD BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Unit Circular Skylights

Circular Wall Skylight (Glass) - Model G-CWM

Circular skylights designed to be installed vertically in wall. These skylights mount directly into wall opening.

CAD BIM SPECS CATALOGS VIDEOS

Circular Wall Skylight (Dome) - Model CWM

Features:

Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break and sloped condensation gutter with drainage to exterior
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Skylights windows

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Curb Mount Circular Skylight

Curb Mount Circular Skylight(flat roof detail) - Model CCM

Features:

Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break and sloped condensation gutter
with drainage to exterior
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Available for tubular skylight

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Circular Skylight

Circular Skylight (flat roof detail) - Model C

Features:

Glazing available in sealed double or triple acrylic domes of clear, white, bronze
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)
Retaining cap frame shall be extruded, mill finish (optional baked enamel)
Curb shall be 9'" high (optional 12'") mill finish aluminum, 2 pieces construction of 0.50 outer wall and inner wall, with 2'" thick fiber glass insulation and 3'" aluminum mounting flange
Can be tubular skylight.

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Pyramid Curb Mount Skylight

Pyramid Curb Mount Skylight (flat roof detail) - Model P-PVCCM

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish aluminum alloy (optional baked enamel)

CAD BIM SPECS CATALOGS VIDEOS LEED

Pyramid Curb Mount Skylight (flat roof detail) - Model P-FF (Point)

Designed for mounting on 1 1/2″ (38mm) or 4″ (102mm) curbs with flashing (by others), these units provide excellent performance in all geographic locations.

CAD BIM SPECS CATALOGS VIDEOS

Pyramid Curb Mount Skylight (slope roof detail) - Model P-FF

Features:

Acrylic Pyramid Skylights
Double acrylic pyramids skylight ( or sealed triple pyramids) Available in clear, white, bronze colors.
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy

CAD BIM SPECS CATALOGS VIDEOS LEED

Pyramid Curb Mount Skylight(flat roof detail) - Model P-PVCCM (Ridge-Hip End)

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish aluminum alloy (optional baked enamel)

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Insulated Curb Skylight

Insulated Curb Skylight(for flat roofs) - Model P-CL

Features:

Glazing available in sealed double or triple acrylic pyramids of clear, white, bronze
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)
Retaining cap frame shall be extruded, mill finish (optional baked enamel)
Curb shall be 9'" high (optional 12'") mill finish aluminum, 2 pieces construction of 0.50 outer wall and inner wall, with 2'" thick fiber glass insulation and 3'" aluminum mounting flange

BIM SPECS CATALOGS VIDEOS LEED

Insulated Curb Pyramid Skylight (for flat roofs) - Model P-CL-FF

Skylights designed to be installed on flat roofs, and are similar to model CL-FF, including insulated curb. Pyramid glazing is added for enhanced visual effect.

CAD BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Hatch-Lites

Hatchlite (flat roof detail) - Model HL-FF

Skylights are suitable for use on flat roofs. Designed for mounting on 1 1/2″ (38mm) curbs with flashing (by others), these units combine the natural light of standard skylights with the utility of roof access.

CAD BIM SPECS CATALOGS VIDEOS

Hatchlite (slope roof detail) - Model HL-FF

kylights are suitable for use on slope roofs. Designed for mounting on 1 1/2″ (38mm) curbs with flashing (by others), these units combine the natural light of standard skylights with the utility of roof access.

BIM SPECS CATALOGS VIDEOS

Hatchlite (for flat roofs) - Model HL-CL-FF

Features:

Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break (to prevent thermal transfer to interior of building, superior in thermal conductivity to aluminum)
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Curb shall be 9'" high (optional 12'") mill finish aluminum, 2 pieces construction of 0.50 outer wall and inner wall, with 2'" thick fiber glass insulation and 3'" aluminum mounting flange
This model is fully operational to 70 degrees, controlled by two (2) gas cylinders and grab handle. Hatch shall lock with two spring latch bolts
Option for Egress Window

CAD BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Lean To Slylights

Skylight (Lean To) - Model CU-FF

Features:

Glazing options are of single or double acrylic of clear, bronze, or grey for vertical ends and Curved centre drapes
Incorporating corrosion resistant extruded aluminum curb frame, 6063-T5 alloy, with heliarc welded corner

BIM SPECS CATALOGS VIDEOS LEED

Skylight (Lean To) - Model G-CU

Features:

Custom configured skylight having a variable pitch between 15 deg and 85 deg
Glass glazing/performance:

BIM SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Fall Protection Series

Dome Curve Mount Skylight - Model FPS-FF

Fall Protection Series (FPS) Skylights are suitable for use on all type roofs. Designed for mounting on 1 1/2 (38mm) curbs with flashing (by others), these units provide fall protection conforming to OSHA regulation CFR 1910.23(e)(8) Fall Impact Load Test for skylights.Skylight conform to and exceed test requirements of CAN/CGSB-63.14M89, A"Plastic SkylightA", Class A, Type 2 or Type 3.

BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Residential Series
Glass Curb Mount Skylight

Glass Curb Mount Skylight (slope roof) - Model G-PVCCM

Features:

Curb mount Model G-PVCCM is designed for mounting on roofs with minimum 3:12 pitch
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)

CAD BIM SPECS CATALOGS VIDEOS LEED

Glass Self Flashing Skylight (for sloped roof) - Model G-SR

Features:

Available in single or sealed double glazed glass of:
Insulated clear tempered (optional Low E, Argon gas-filled)
Insulated bronze, blue, gray, and green tempered (optional Low E and Argon gas-filled)
Heat Mirror
Reflective tempered over laminated glass is also available to meet Building codes in different areas. Glass is non-combustible
Consisting of corrosion resistant extruded aluminum base frame
Base frame shall have a 2'" thermal insulation and an extruded rigid vinyl thermal break frame
Retaining cap frame shall be extruded, mill finish aluminum alloy (optional baked enamel)

CAD BIM SPECS CATALOGS VIDEOS LEED

Glass Self-Flashing Skylight(for sloped roof) - Model G-PVCSR

Features:

Available in single or sealed double glazed glass of:
Insulated clear tempered (optional Low E, Argon gas-filled)
Insulated bronze, blue, gray, and green tempered (optional Low E and Argon gas-filled)
Heat Mirror
Reflective tempered over laminated glass is also available to meet Building codes in different areas. Glass is non-combustible
The skylight shall consist of rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum) which incorporates a high capacity, 8 degree sloped condensation gutter with drainage to exterior, and co-extruded rubber draft seal and a 3'" mounting flange
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy

CAD BIM SPECS CATALOGS VIDEOS LEED

Glass Curb Mount Skylight (flat roof) - GV-PVCSR

Features:

The skylight shall consist of rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum) which incorporates a high capacity, 8 degree sloped condensation gutter with drainage to exterior, and co-extruded rubber draft seal and a 3'" mounting flange mill finish (optional baked enamel) , 6063-T5 aluminum alloy with heliarc welded corners
Incorporating a heavy duty corrosion resistant chain drive operating mechanism, pin pivot hinge system and removable insect screen
Optional 6'-10' manual or electric extension poles
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Options for Remote controlled and Rain sensor are available
Glass options/performance:

BIM CATALOGS VIDEOS LEED

Glass Curb Mount Skylight (Wide Roof) - Model GV-PVCCM

Features:

Designed for mounting on roofs with minimum 3:12 pitch
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)
Incorporating a heavy duty corrosion resistant chain drive operating mechanism, pin pivot hinge system and removable insect screen

CAD BIM SPECS CATALOGS VIDEOS LEED

Glass Venting Self-Flashing Skylight (for sloped roof) - Model GV-PVCSR

Skylights designed to be installed on shingled roofs with minimum 3:12 pitch. These skylights mount directly over roof opening and require no curbs or metal flashings.

CAD BIM SPECS CATALOGS VIDEOS

{{this.show}} {{this.hide}} Residential Curb Mount Skylights

Dome Curb Mount Venting Skylight - Model EV_PVCCM

Remote controlled and rain sensor options
Skylight motorization technical information

BIM SPECS CATALOGS VIDEOS LEED

Pyramid Curb Mount Skylight (flat roof detail) - Model P-PVCCM

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish aluminum alloy (optional baked enamel)

SPECS CATALOGS VIDEOS LEED

Dome Venting Curb Mount Skylight(slope roof detail) - Model V-PVCCM

Features:

Available in sealed double acrylic domes ( or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish (optional baked enamel) aluminum alloy
Optional 6' ' 10' manual or electric extension poles
Incorporating a heavy duty corrosion resistant chain drive operating mechanism, pin pivot hinge system and removable insect screen

CAD BIM SPECS CATALOGS VIDEOS

Pyramid Curb Mount Skylight (flat roof detail) - Model P-PVCCM (Ridge-Hip End)

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Consisting of corrosion resistant extruded aluminum curb frame
Curb frame shall have an extruded rigid vinyl thermal break
Retaining cap frame shall be extruded, mill finish aluminum alloy (optional baked enamel)

SPECS CATALOGS VIDEOS LEED

Dome Curb Mount Venting Skylight - Model EGV-PVCCM

Remote controlled and rain sensor options
Skylight motorization technical information

BIM SPECS CATALOGS VIDEOS LEED

Dome Self Flashing Skylight (for sloped roof) - Model SR

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze, grey
Consisting of corrosion resistant extruded aluminum curb frame, 3'" aluminum mounting flange

CAD BIM SPECS CATALOGS VIDEOS LEED

Dome Venting Self-Flashing Skylight (for sloped roof) - Model V-PVCSR

Features:

The skylight shall consist of rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum) which incorporates a high capacity, 8 degree sloped condensation gutter with drainage to exterior, and co-extruded rubber draft seal and a 3'" mounting flange mill finish (optional baked enamel), 6063-T5 aluminum alloy with heliarc welded corners

CAD BIM SPECS CATALOGS VIDEOS LEED

Dome Self Flashing Skylight (for sloped roof) - Model PVCSR

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze, grey
The skylight shall consist of rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum) which incorporates a high capacity, 8 degree sloped condensation gutter with drainage to exterior, and co-extruded rubber draft seal and a 3'" mounting flange

CAD BIM SPECS CATALOGS VIDEOS LEED

Hatchlite (flat roof detail) - Model HL-FF

Features:

Available in sealed double acrylic domes (or sealed triple domes) of clear, white, bronze
Vinyl curb is a rigid high-impact extruded vinyl curb frame (superior in thermal conductivity to aluminum)
Retaining cap frame shall be extruded, mill finish (optional baked enamel)
Consisting of corrosion resistant extruded aluminum curb frame, 6063-T5 alloy, with heliarc welded corners
This model is fully operational to 70 degrees, controlled by two #30 gas cylinders and grab handle.Two spring latch bolts locks the hatch securely.

CAD SPECS CATALOGS VIDEOS LEED

{{this.show}} {{this.hide}} Online Resources

Online Resources

Photo Gallery
Brochures
Product Binders

Last Update: 2018-01-16

Artistic Skylight Domes Ltd.skylight domes

CONTACT INFO

CONTENT

WARRANTY

COMPANY OVERVIEW

ALL PRODUCTS

Artistic Skylight Domes Ltd.
skylight domes
