Clarity - Enclosed Vertical Platform Lift

Ascension Clarity is a premium ADA-compliant enclosed vertical platform lift (VPL) engineered for commercial, institutional, and public environments where architectural integration and minimal structural impact are critical.

With a compact footprint and ultra-thin platform floor, Clarity installs without a pit or access ramp, providing vertical travel up to 14 feet while preserving design intent. Its clean sightlines and enclosed configuration make it an ideal alternative to bulky platform lifts or cost-prohibitive elevator systems.

Clarity is specified for healthcare facilities, educational campuses, stadiums, museums, performing arts centers, government buildings, commercial properties, and high-visibility public spaces where both accessibility and aesthetics matter.

Designed and manufactured in the USA, Clarity delivers long-term performance, advanced safety, and simplified installation in a refined architectural package.

Key Features & Benefits

• ADA-compliant enclosed vertical platform lift (ASME A18.1)

• Pitless and ramp-free installation

• Compact footprint — fits with as little as 4 feet of floor clearance

• Enclosed design with clear panels for visibility and rider comfort

• Quiet, smooth electro-hydraulic drive with vibration isolation

• 750 lbs. rated capacity

• Aluminum and stainless steel construction

• Custom finish options and architectural detailing

• CAD, BIM, and specification support available

Technical Highlights

• Vertical Travel: up to 168″ (14 ft)

• Rated Load: 750 lbs.

• Platform Size: 36″ W x 56″ L

• Overall Footprint: 48″ W x 68″ L

• Travel Speed: Approximately 20 ft/min

• Code Compliance: ADA, ASME A18.1

Model Configurations

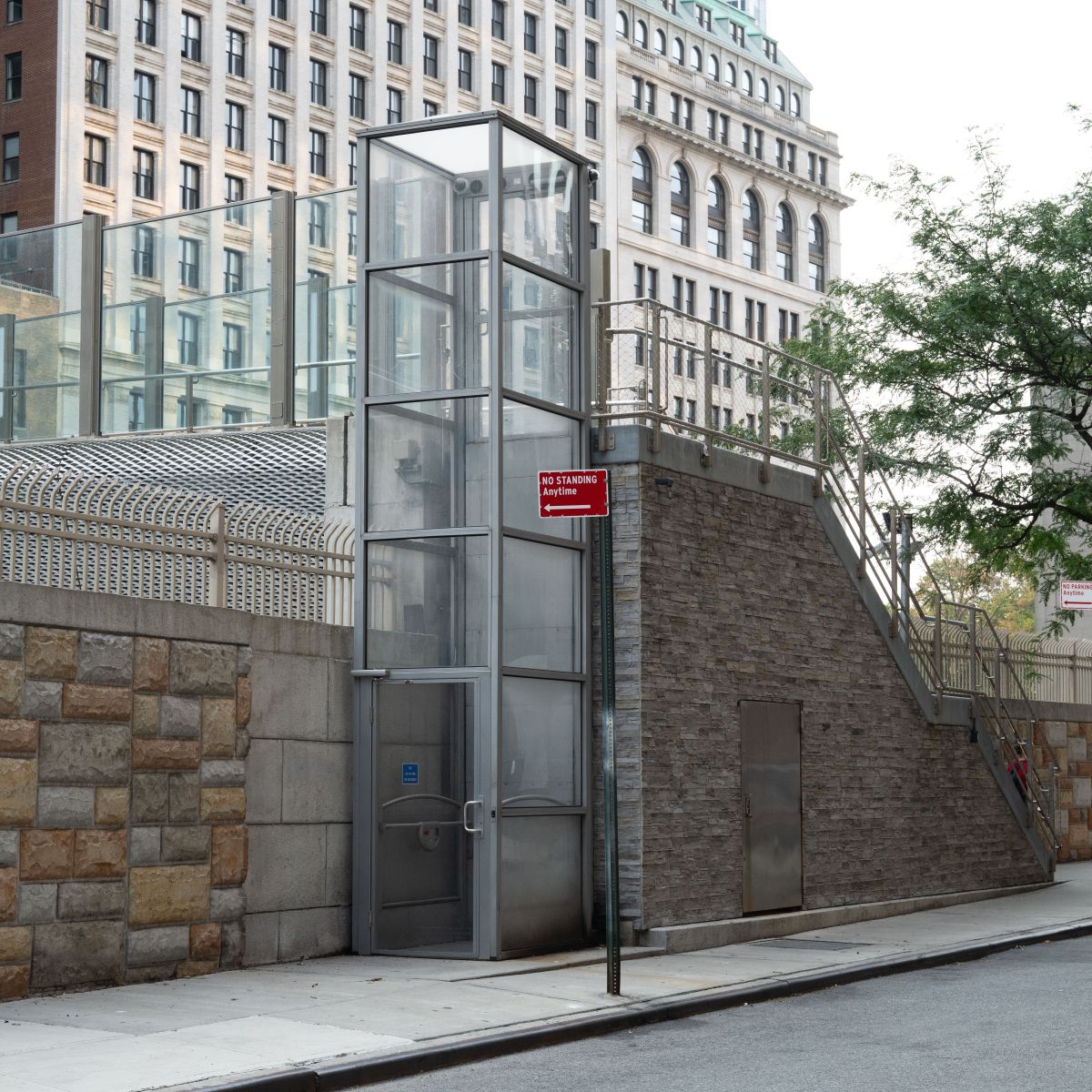

Clarity 16E - Enclosed, Straight-Through
Standard enclosed configuration with straight-through entry and exit for intuitive traffic flow. Suitable for indoor or outdoor applications.
Clarity 16D- Enclosed, Same-Side
Entry and exit on the same side, ideal for tight landings or constrained layouts.

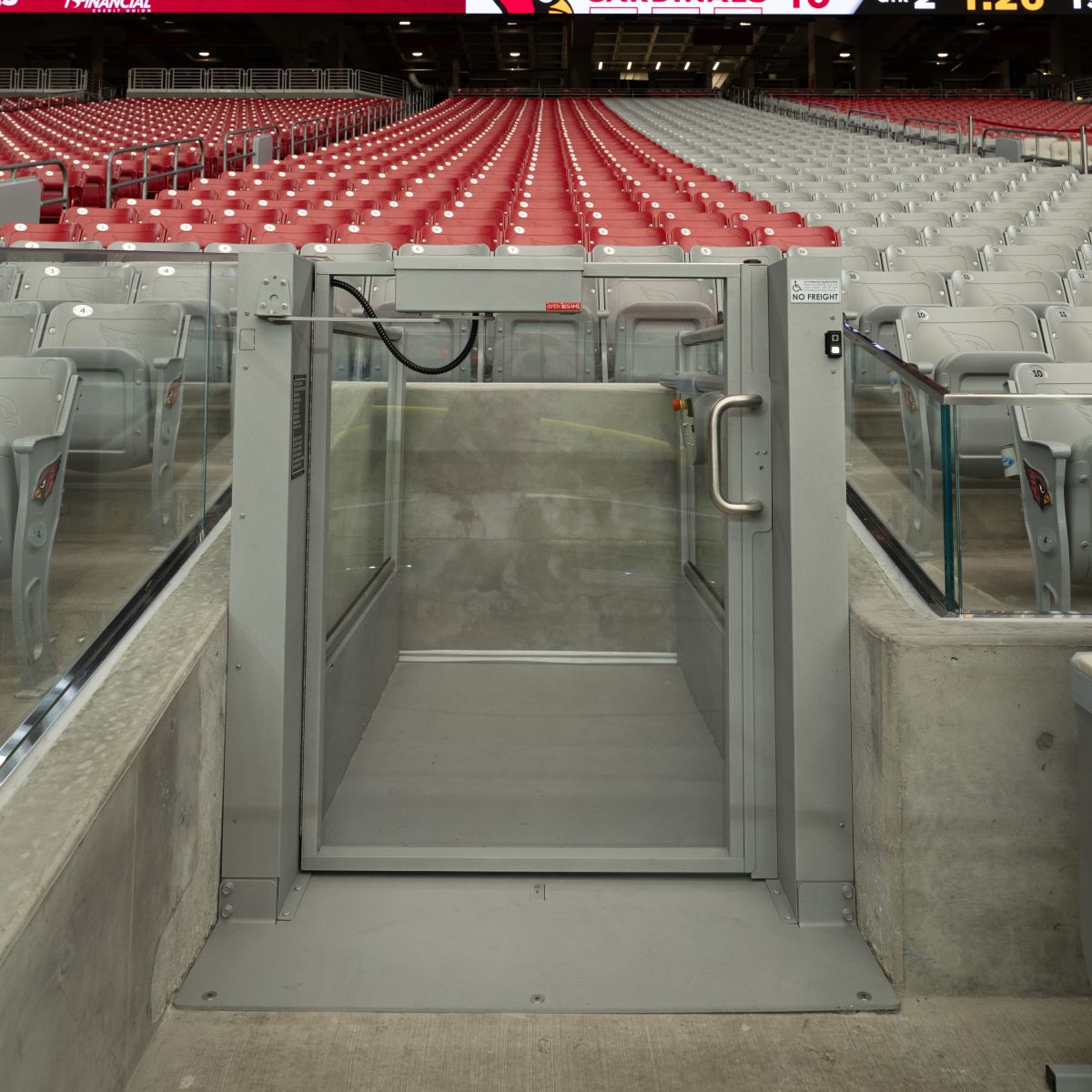

Clarity 16S- Shaftway, Straight-Through
Installed within a shaftway for projects requiring an elevator-style presentation while maintaining platform lift efficiency.
Clarity 16C- Shaftway, Same-Side
Shaftway configuration with same-side entry/exit for compact circulation paths and refined architectural integration.
