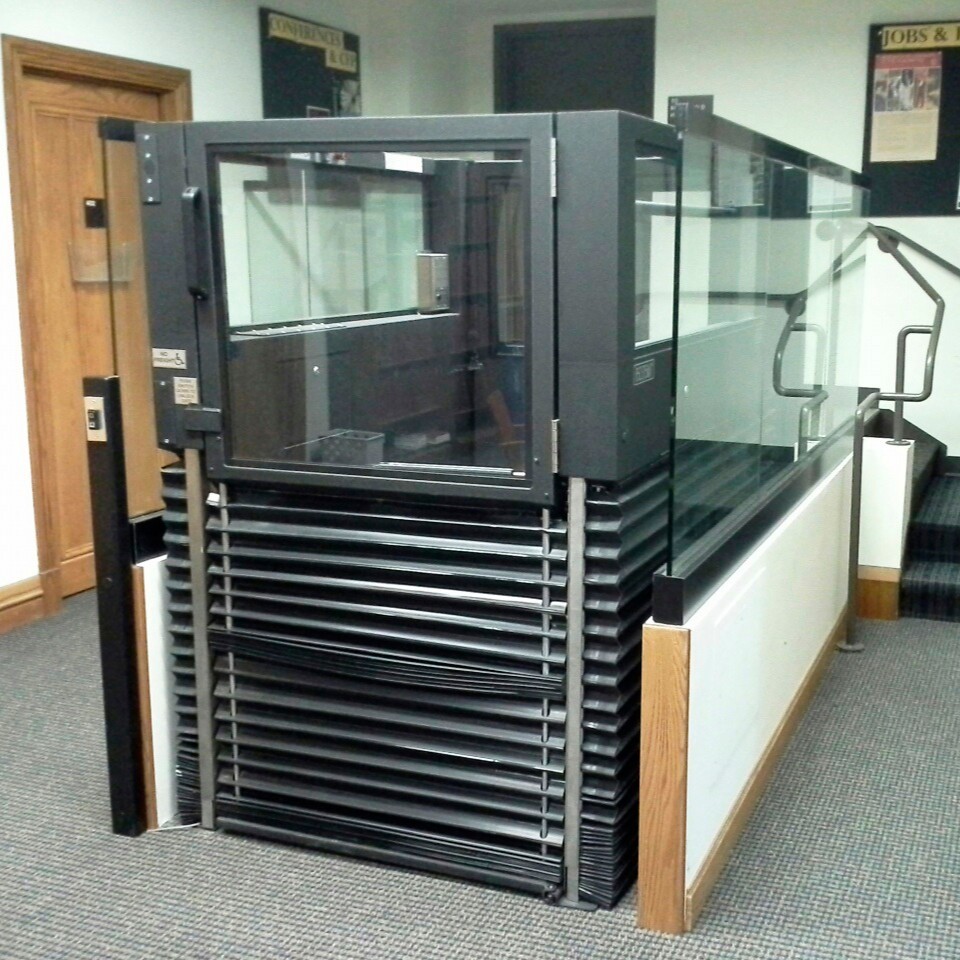

Virtuoso 5460 - Mid-Range Vertical Platform Lift

Ascension Virtuoso is an ADA-compliant vertical platform lift (VPL) engineered to deliver dependable vertical access from approximately 12″ to 60″ in commercial, institutional, and public environments where architectural integration and occupant experience are priorities.

Its sleek, low-profile footprint eliminates the need for entry ramps or deep pits, preserving existing architecture while providing safe, code-compliant accessibility.

Virtuoso features Ascension's 360° rigid safety skirting, which protects the area beneath the lift, enhancing safety and visual completeness without sacrificing sightlines.

Virtuoso is ideal for auditoriums, stages, platforms, museums, commercial entries, campus facilities, worship spaces, and other environments where moderate elevation changes require a refined mobility solution with strong architectural presence.

Available in portable and permanent configurations, Virtuoso provides versatile accessibility solutions for moderate rises where a fixed elevator is unnecessary.

Key Features & Benefits

• ADA-compliant vertical platform lift (ASME A18.1, ADAAG)

• Vertical travel: 12″– 60″

• Integrated 360° rigid safety skirting for enhanced protection

• Pitless, ramp-free design preserves architecture

• Compact footprint with full ADA platform size

• Quiet electro-hydraulic drive system

• Portable and fixed installation options

• Custom color and window etching options available

• Designed and manufactured in the USA

Technical Highlights

• Vertical Travel: 12″– 60″

• Capacity: 750 lbs.

• Platform Size: Approx. 36″ W x 54″ L

• Overall Footprint: Approx. 52″ W x 64″ L

• Drive: Electro-hydraulic

• Compliance: ADA, ASME A18.1, ANSI A117.1

Model Configurations

Virtuoso 5460F - Fixed with Upper Platform Gate
Self-contained vertical platform lift with platform-mounted gate, designed for permanent moderate rise accessibility.

Virtuoso 5460FG - Fixed with Upper Landing Gate
Permanent installation with independent upper landing gate for enhanced safety at the landing interface.
